HMC836LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 3365 - 3705 MHz

Download HMC836LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

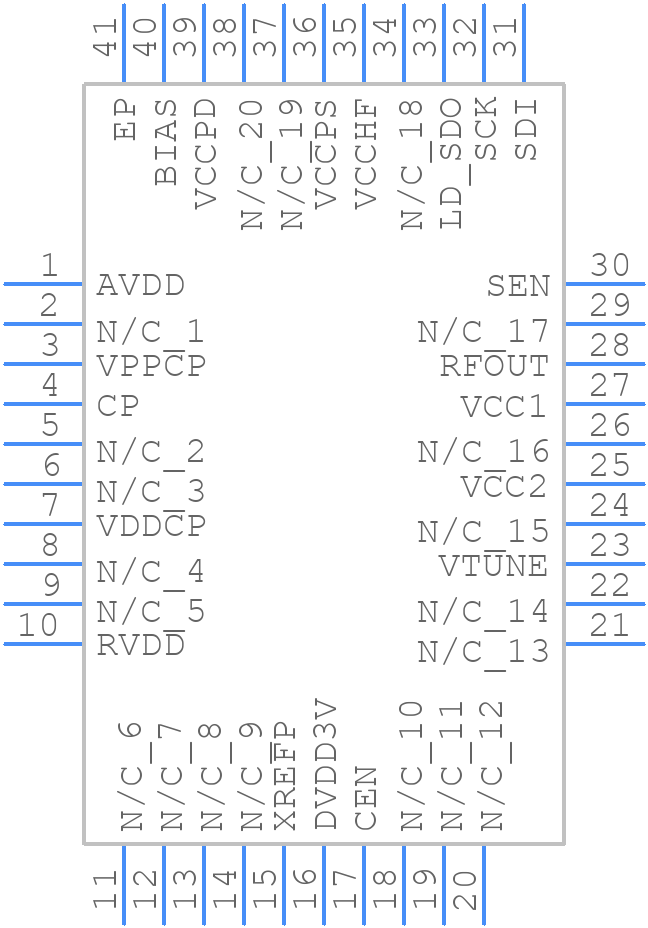

HMC836LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC836LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC836LP6CETR_2023
click to zoom
3D Models
HMC836LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC836LP6CETR_2023
click to zoom

HMC836LP6CETR Details

  • Manufacturer Part Number:

    HMC836LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HMC836LP6CETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC836LP6CETR can be found in the 'PCB Layout and Thermal Management' section of the device's evaluation board documentation. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
  • Analog Devices provides a troubleshooting guide for the HMC836LP6CETR, which covers common issues and their solutions. Additionally, the device's evaluation board documentation and application notes can provide valuable insights and troubleshooting techniques.
  • The recommended power supply decoupling and filtering techniques for the HMC836LP6CETR can be found in the device's datasheet and evaluation board documentation. It is essential to follow these guidelines to ensure low noise and high stability.
  • Analog Devices provides application notes and design guides that provide optimization techniques for specific frequency bands or applications. Additionally, the device's evaluation board documentation can provide valuable insights and optimization techniques.
  • The environmental and reliability considerations for the HMC836LP6CETR can be found in the device's datasheet and reliability report. It is essential to follow these guidelines to ensure high reliability and long-term operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC836LP6CETR Overview

Use the download button to access the HMC836LP6CETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC83, or try a keyword search, such as PLL or Frequency Synthesis Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
