HMC838LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 795 - 945, 1590 - 1890, 3180 - 3780 MHz

Download HMC838LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

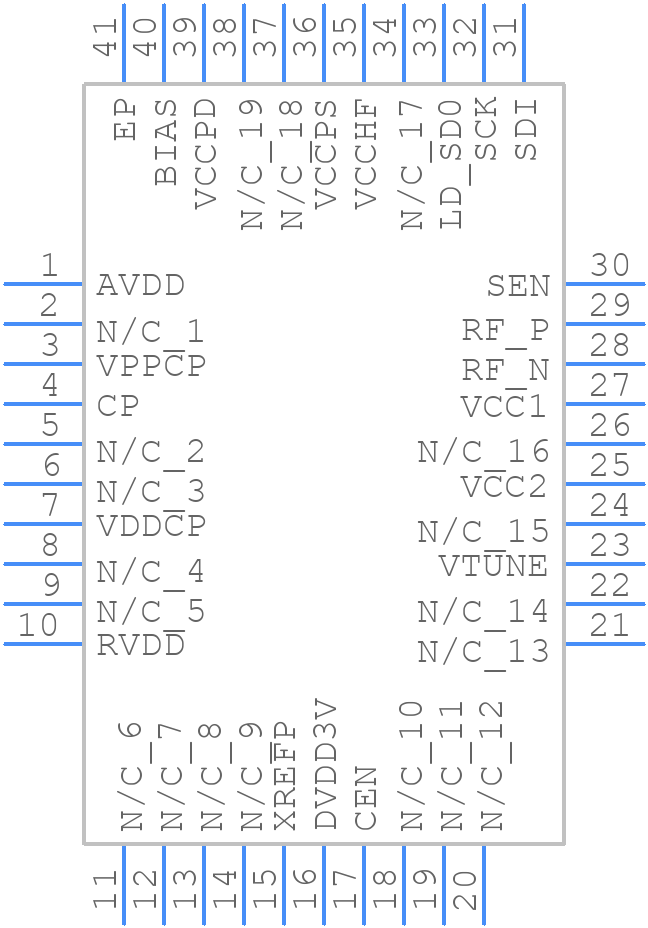

HMC838LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC838LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC838LP6CETR-
click to zoom
3D Models
HMC838LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - HMC838LP6CETR-
click to zoom

HMC838LP6CETR Details

  • Manufacturer Part Number:

    HMC838LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE DETECTOR

  • JESD-30 Code:

    S-PQCC-N40

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HMC838LP6CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC838LP6CETR requires a single 5V supply. Ensure the voltage supply is clean and well-regulated, and decouple the power pins with 10nF and 100nF capacitors.
  • The HMC838LP6CETR can operate up to 38 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • Minimize the noise figure by using a low-noise voltage regulator, keeping the signal traces short, and using a good quality PCB material with low dielectric loss.
  • The recommended input and output impedance is 50 ohms. Ensure the impedance is matched to minimize reflections and ensure optimal performance.
