HMC840LP6CETR - Analog Devices

Description: Fractional-N PLL with Integrated VCO SMT, 1.31 - 5.66 GHz

Download HMC840LP6CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

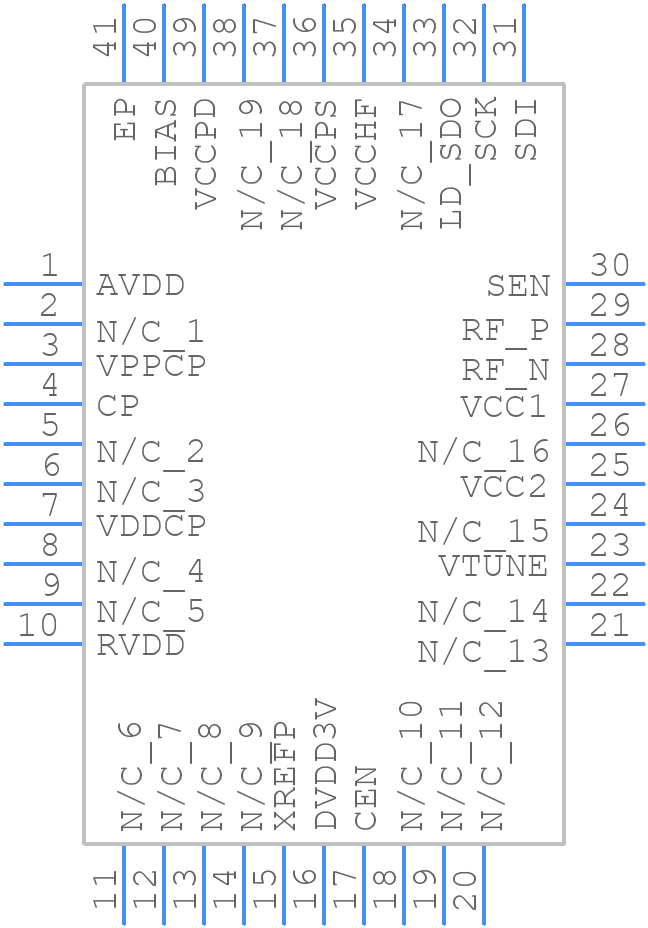

Symbol
HMC840LP6CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC840LP6CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H783
click to zoom
3D Models
HMC840LP6CETR - Analog Devices - 3D model - Quad Flat No-Lead - H783
click to zoom

HMC840LP6CETR Details

  • Manufacturer Part Number:

    HMC840LP6CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    40

  • Manufacturer Package Code:

    HCP-40-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30
