HMC8410LP2FETR - Analog Devices

Description: RF Amplifier Wideband LNAs-DC-8GHz P1dB20dBm-20dB Gai

Download HMC8410LP2FETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

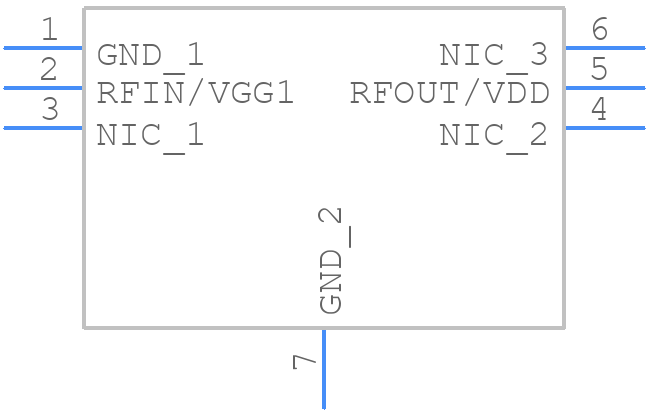

HMC8410LP2FETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8410LP2FETR - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-6-9
click to zoom
3D Models
HMC8410LP2FETR - Analog Devices - 3D model - Small Outline No-lead - CP-6-9
click to zoom

HMC8410LP2FETR Details

  • Manufacturer Part Number:

    HMC8410LP2FETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-9

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-07-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HMC8410LP2FETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF capacitors, and the bias voltage (VBIAS) is set to 3.3V or 5V, depending on the application.
  • The maximum power dissipation is 1.5W, so ensure proper heat sinking and thermal management to prevent overheating.
  • Check the PCB layout for noise coupling, ensure proper decoupling, and verify the bias voltage and current. Also, check for any external component failures or mismatch.
  • Yes, the HMC8410LP2FETR can be used in a push-pull configuration, but ensure proper matching of the output stages and a common-mode choke to prevent oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8410LP2FETR Overview

Use the download button to access the HMC8410LP2FETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC84, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
