HMC8411LP2FETR - Analog Devices

Description: RF Amplifier DC - 8 GHz 15 dB Gain

Download HMC8411LP2FETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

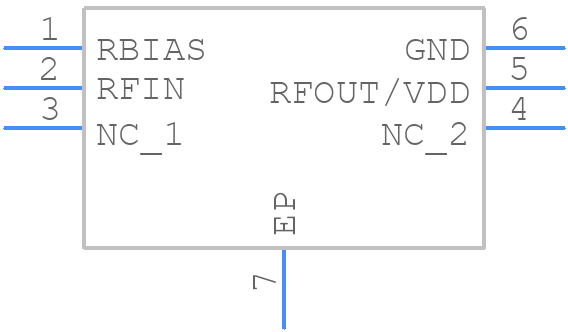

HMC8411LP2FETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8411LP2FETR - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 2 mm × 2 mm Body and 0.85 mm Package Height (CP-6-12)_2021
click to zoom
3D Models
HMC8411LP2FETR - Analog Devices - 3D model - Small Outline No-lead - 2 mm × 2 mm Body and 0.85 mm Package Height (CP-6-12)_2021
click to zoom

HMC8411LP2FETR Details

  • Manufacturer Part Number:

    HMC8411LP2FETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-03-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e4

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HMC8411LP2FETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF capacitors, and the bias voltage (VBIAS) is set to 3.3V or 5V, depending on the application.
  • The maximum power dissipation is 1.5W, so ensure proper heat sinking and thermal management to prevent overheating.
  • Use a scope to check the input and output signals, and verify the power supply and bias voltages. Check for proper PCB layout and decoupling, and ensure the device is operated within its recommended operating conditions.
  • Yes, the HMC8411LP2FETR can be used in switching power supply applications, but ensure the device is properly biased and the output is filtered to minimize noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8411LP2FETR Overview

Use the download button to access the HMC8411LP2FETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC84, or try a keyword search, such as RF/Microwave Amplifiers
