HMC8411TCPZ-EP-PT - Analog Devices

Description: RF Amplifier DC - 8 GHz 15 dB Gain Ext Temp

Download HMC8411TCPZ-EP-PT Model
Schematic

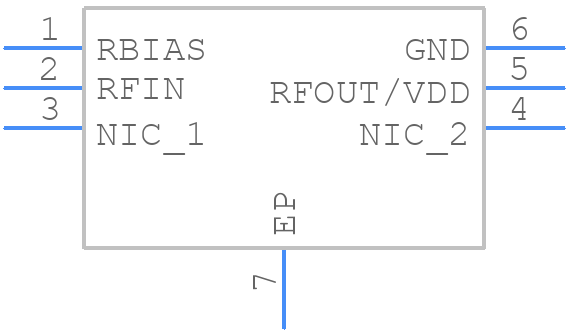

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC8411TCPZ-EP-PT - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-6-12
click to zoom
3D Models
HMC8411TCPZ-EP-PT - Analog Devices  - 3D model - Small Outline No-lead - CP-6-12
click to zoom

HMC8411TCPZ-EP-PT Details

  • Manufacturer Part Number:

    HMC8411TCPZ-EP-PT

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    11 dB

  • Input Power-Max (CW):

    20 dBm

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

HMC8411TCPZ-EP-PT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The HMC8411TCPZ-EP-PT requires a single +5V power supply. Ensure the power supply is clean and well-regulated. A 0.1uF decoupling capacitor should be placed close to the device. The device also requires a bias resistor (Rbias) to set the output current, typically 1kΩ to 4.7kΩ.
  • The HMC8411TCPZ-EP-PT is rated for operation from -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Use an oscilloscope to monitor the output signal and power supply lines. Check for proper biasing, decoupling, and PCB layout. Verify the input signal is within the recommended range. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • The HMC8411TCPZ-EP-PT is a radiation-hardened device, but it's essential to consult the datasheet and application notes for specific radiation tolerance and testing information. Ensure the device is properly derated and used within its recommended operating conditions.
