HMC8412LP2FE - Analog Devices

Description: Low Noise Amplifier, 0.4 GHz to 11 GHz

Download HMC8412LP2FE Model

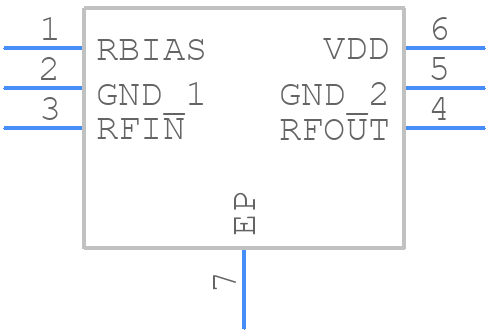

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC8412LP2FE - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - CP-6-12_2024
click to zoom
3D Models
HMC8412LP2FE - Analog Devices  - 3D model - Small Outline No-lead - CP-6-12_2024
click to zoom

HMC8412LP2FE Details

  • Manufacturer Part Number:

    HMC8412LP2FE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-05-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    25 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    11000 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.375

HMC8412LP2FE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are decoupled with 100nF capacitors to ground, and the VCC pin is biased to 5V ± 10%. Also, ensure the input and output pins are properly terminated to prevent reflections.
  • The maximum input power is +20 dBm (100 mW). Exceeding this may cause damage to the device or affect its performance.
  • Use a spectrum analyzer to check the output spectrum for spurs or distortion. Verify the input signal is within the recommended power range and the device is properly biased. Check for proper PCB layout and decoupling.
  • Yes, the HMC8412LP2FE can be used in a push-pull configuration to improve output power and reduce distortion. However, ensure proper biasing and termination to prevent oscillations.
