HMC8412TCPZ-EP-PT - Analog Devices

Description: RF Amplifier IC General Purpose 400MHz ~ 11GHz 6-LFCSP (2x2)

Download HMC8412TCPZ-EP-PT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

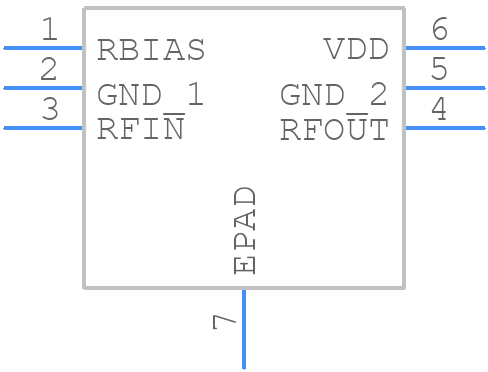

HMC8412TCPZ-EP-PT - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8412TCPZ-EP-PT - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024-1
click to zoom
3D Models
HMC8412TCPZ-EP-PT - Analog Devices - 3D model - Small Outline No-lead - LFCSP:LEADFRM CHIP SCALE_2024-1
click to zoom

HMC8412TCPZ-EP-PT Details

  • Manufacturer Part Number:

    HMC8412TCPZ-EP-PT

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-10-29

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • JESD-609 Code:

    e4

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

HMC8412TCPZ-EP-PT Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guidelines in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
  • Analog Devices provides a troubleshooting guide in their application notes and datasheet. Additionally, engineers can use tools like oscilloscopes, signal generators, and logic analyzers to debug issues. It's also recommended to consult with Analog Devices' technical support team for assistance.
  • The HMC8412TCPZ-EP-PT is qualified for operation in a variety of environmental conditions, including temperature, humidity, and vibration. Refer to the datasheet and Analog Devices' environmental testing documentation for specific details.
  • Analog Devices provides guidelines for EMC and EMI compliance in their application notes and datasheet. Engineers should follow these guidelines and ensure proper PCB layout, shielding, and filtering to minimize EMI and ensure EMC compliance.
  • Analog Devices provides reliability and MTBF specifications for the HMC8412TCPZ-EP-PT in their datasheet and reliability documentation. These specifications are based on accelerated life testing and other reliability testing methods.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8412TCPZ-EP-PT Overview

Use the download button to access the HMC8412TCPZ-EP-PT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC84, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
