HMC8413LP2FE - Analog Devices

Description: Low Noise Amplifier, 0.01 GHz to 9 GHz

Download HMC8413LP2FE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

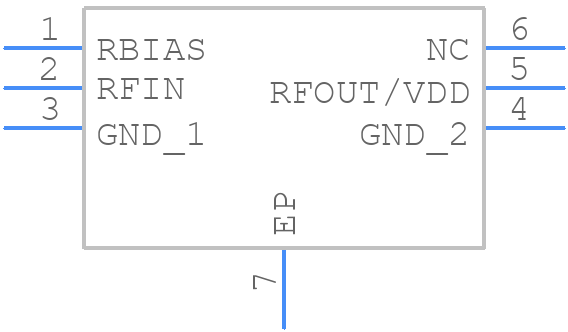

HMC8413LP2FE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8413LP2FE - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 2 mm × 2 mm Body and 0.85 mm Package Height (CP-6-12)_2021
click to zoom
3D Models
HMC8413LP2FE - Analog Devices - 3D model - Small Outline No-lead - 2 mm × 2 mm Body and 0.85 mm Package Height (CP-6-12)_2021
click to zoom

HMC8413LP2FE Details

  • Manufacturer Part Number:

    HMC8413LP2FE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Manufacturer Package Code:

    CP-6-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    25 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    9000 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SOLCC6,.08,25

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • VSWR-Max:

    1.29

HMC8413LP2FE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The maximum input power is +20 dBm (100mW). Exceeding this may cause damage to the device or affect its performance.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the device is properly biased and decoupled. Use a spectrum analyzer to check for any unwanted frequency components. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the HMC8413LP2FE can be used in a push-pull configuration. However, ensure the output stage is properly biased and decoupled to prevent oscillations. Consult the datasheet and application notes for more information.
