HMC8415LP6GE - Analog Devices

Description: 40 W (46 dBm), 9 GHz to 10.5 GHz, GaN Power Amplifier

Download HMC8415LP6GE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

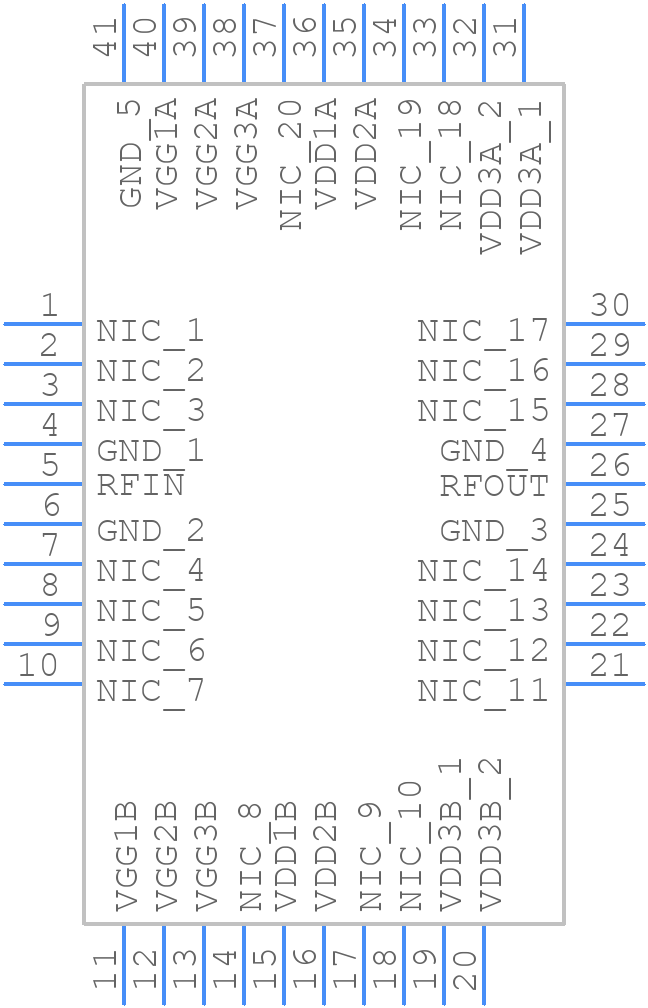

HMC8415LP6GE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8415LP6GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-7
click to zoom
3D Models
HMC8415LP6GE - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-7
click to zoom

HMC8415LP6GE Details

  • Manufacturer Part Number:

    HMC8415LP6GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220-WJJD-5, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.B.2.B.2

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-09-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25.5 dB

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    10500 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC8415LP6GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The maximum power dissipation of the HMC8415LP6GE is 1.5W. Ensure proper heat sinking and thermal management to prevent overheating.
  • Check the PCB layout for any signal integrity issues, ensure proper decoupling and biasing, and verify the input and output impedance matching. Also, check for any signs of overheating or thermal issues.
  • Yes, the HMC8415LP6GE can be used in a push-pull configuration, but ensure proper impedance matching and biasing to prevent oscillations and instability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8415LP6GE Overview

Use the download button to access the HMC8415LP6GE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC84, or try a keyword search, such as RF/Microwave Amplifiers
