HMC8415LP6GETR - Analog Devices

Description: 1A, 28V RF Amplifier IC General Purpose 9GHz ~ 10.5GHz 40-LFCSP (6x6)

Download HMC8415LP6GETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

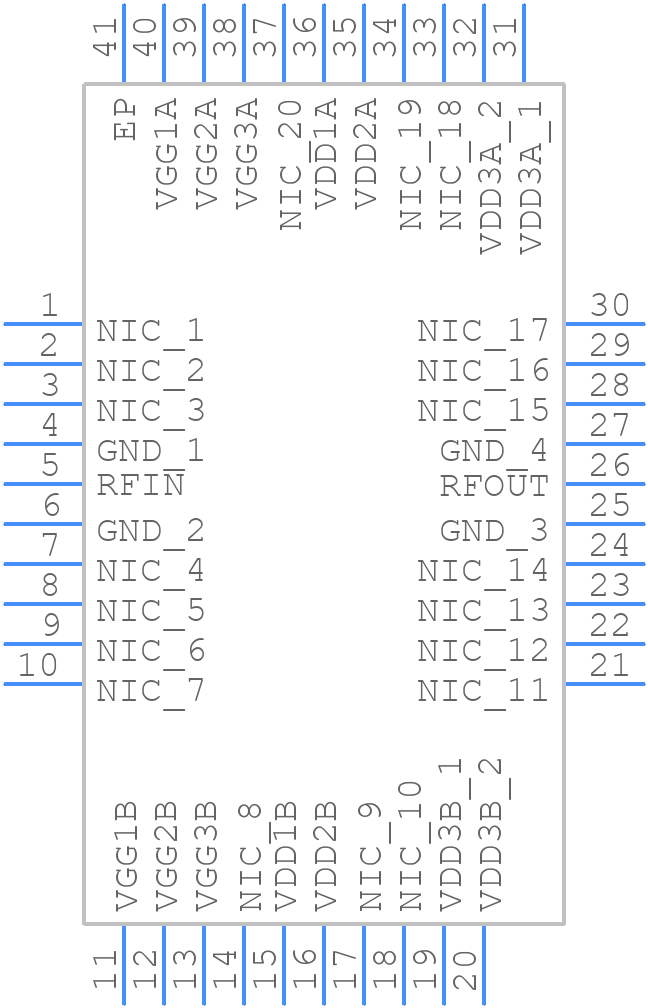

HMC8415LP6GETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8415LP6GETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-7
click to zoom
3D Models
HMC8415LP6GETR - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE_2023-7
click to zoom

HMC8415LP6GETR Details

  • Manufacturer Part Number:

    HMC8415LP6GETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220-WJJD-5, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-7

  • Country Of Origin:

    South Korea

  • ECCN Code:

    3A001.B.2.B.2

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2018-09-18

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25.5 dB

  • Input Power-Max (CW):

    30 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    10500 MHz

  • Operating Frequency-Min:

    9000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC8415LP6GETR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the HMC8415LP6GETR can be found in the application note AN-1369 from Analog Devices. It provides guidelines for PCB layout, thermal management, and decoupling to ensure optimal performance and minimize thermal issues.
  • The input and output matching networks for the HMC8415LP6GETR can be optimized using simulation tools such as ADS or AWR Microwave Office. The application note AN-1369 also provides guidance on how to design and optimize the matching networks for specific frequency bands and impedance requirements.
  • The maximum operating temperature range for the HMC8415LP6GETR is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of -20°C to 70°C for optimal performance and reliability.
  • The HMC8415LP6GETR requires a specific biasing and configuration to operate correctly. The datasheet provides a recommended biasing scheme, and the application note AN-1369 provides additional guidance on how to configure the device for specific applications, such as radar, satellite communications, or test and measurement.
  • The HMC8415LP6GETR is a sensitive device and requires proper ESD protection and handling procedures to prevent damage. The datasheet provides guidelines on how to handle and store the device, and the application note AN-1369 provides additional information on ESD protection and handling procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC8415LP6GETR Overview

Use the download button to access the HMC8415LP6GETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC84, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
