HMC849ALP4CE - Analog Devices

Description: ANALOG DEVICES - HMC849ALP4CE - RF SWITCH, SPDT, DC-6GHZ, LFCSP-16

Download HMC849ALP4CE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

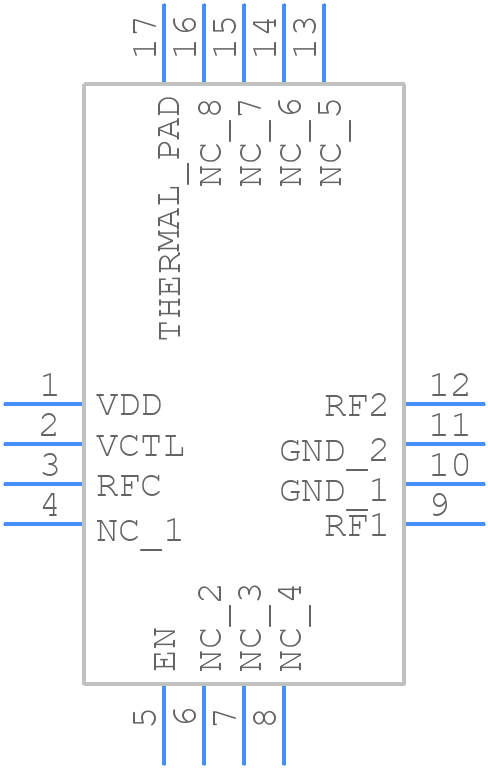

Symbol
HMC849ALP4CE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC849ALP4CE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16-ren1
click to zoom
3D Models
HMC849ALP4CE - Analog Devices - 3D model - Quad Flat No-Lead - QFN16-ren1
click to zoom

HMC849ALP4CE Details

  • Manufacturer Part Number:

    HMC849ALP4CE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-40

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    27 dBm

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Isolation-Min:

    35 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On Time-Nom:

    0.15 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.33

HMC849ALP4CE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC849ALP4CE requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 25mA.
  • The HMC849ALP4CE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC849ALP4CE has a parallel interface. Use a buffer or a level translator to interface with a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input impedance.
  • The typical current consumption of the HMC849ALP4CE is 25mA at 5V, but this can vary depending on the operating frequency and the specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC849ALP4CE Overview

Use the download button to access the HMC849ALP4CE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC84, or try a keyword search, such as RF/Microwave Switches

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
