HMC849ALP4CETR - Analog Devices

Description: RF Switch ICs DC-6 GHZ Hi Isolation Switch

Download HMC849ALP4CETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

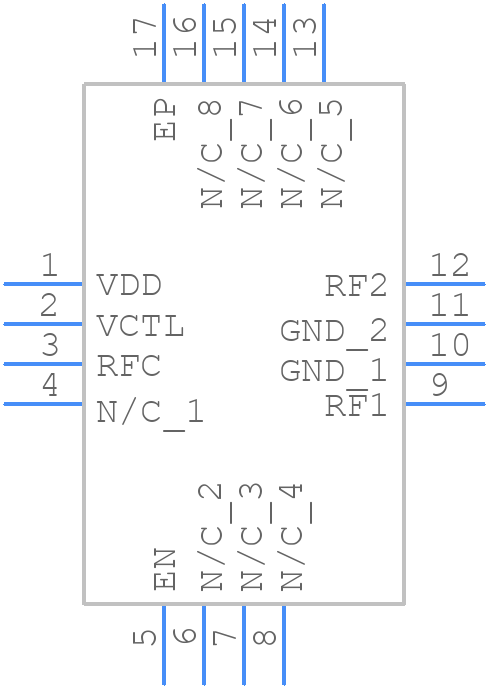

HMC849ALP4CETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC849ALP4CETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H849A
click to zoom
3D Models
HMC849ALP4CETR - Analog Devices - 3D model - Quad Flat No-Lead - H849A
click to zoom

HMC849ALP4CETR Details

  • Manufacturer Part Number:

    HMC849ALP4CETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    4 X 4 MM, ROHS COMPLIANT, PLASTIC, LEADLESS, SMT, QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-40

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 1dB Compression Point:

    33 dBm

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    33 dBm

  • Insertion Loss-Max:

    2.5 dB

  • Isolation-Min:

    8 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    ABSORPTIVE

  • Power Supplies:

    3/5 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • VSWR-Max:

    1.33

HMC849ALP4CETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the power supply.
  • The HMC849ALP4CETR requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The recommended bias current is 10mA to 20mA.
  • The HMC849ALP4CETR can operate up to 6 GHz, but the optimal frequency range is between 100 MHz to 3 GHz. Above 3 GHz, the gain and noise figure may degrade.
  • The HMC849ALP4CETR has a thermal pad on the bottom of the package. Ensure good thermal contact with a heat sink or a thermal pad on the PCB. Keep the ambient temperature below 85°C to prevent thermal shutdown.
  • The HMC849ALP4CETR has a 50Ω input and output impedance. Use a π-network or a T-network to match the impedance for optimal power transfer and minimal reflections.
