HMC8500LP5DE - Analog Devices

Description: ANALOG DEVICES - HMC8500LP5DE - GAN PWR AMPLIFIER, 10MHZ-2.8GHZ, LFCSP32

Download HMC8500LP5DE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

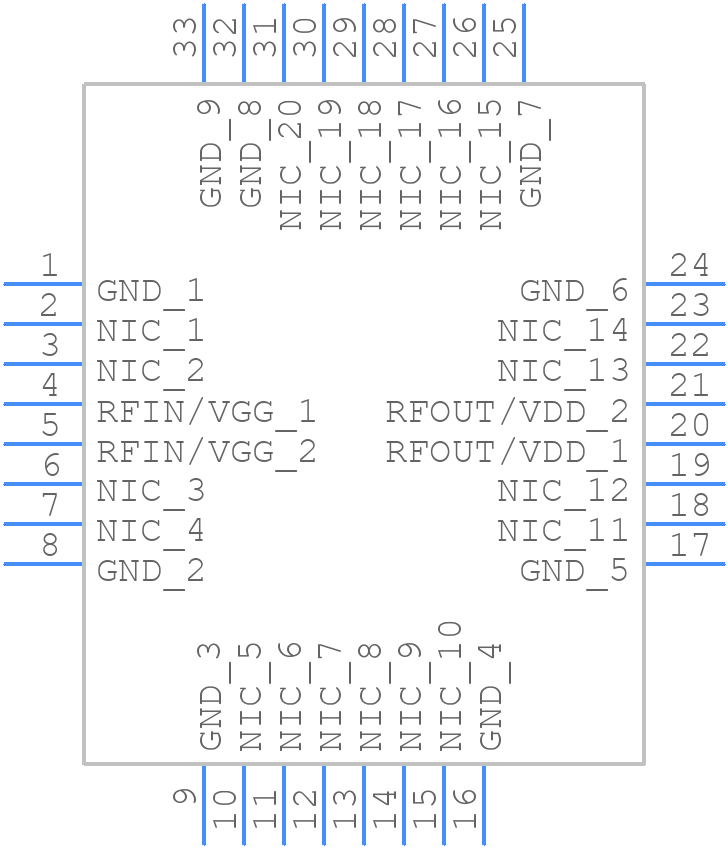

HMC8500LP5DE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC8500LP5DE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CG-32-2
click to zoom
3D Models
HMC8500LP5DE - Analog Devices - 3D model - Quad Flat No-Lead - CG-32-2
click to zoom

HMC8500LP5DE Details

  • Manufacturer Part Number:

    HMC8500LP5DE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2017-01-27

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    12 dB

  • Input Power-Max (CW):

    33 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    2800 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    28 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Supply Current-Max:

    100 mA

  • Surface Mount:

    YES

  • Technology:

    GAN

  • VSWR-Max:

    6

HMC8500LP5DE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a Smith chart to design the matching networks for optimal gain and efficiency.
  • Derate the voltage by 10-15% and the current by 20-25% to ensure high reliability and long-term operation.
  • Use a stability analysis tool to identify potential oscillation frequencies. Add resistive or capacitive loading to the output stage to prevent oscillations.
  • The thermal shutdown threshold is typically 150°C, and the thermal warning threshold is typically 120°C. These values may vary depending on the specific application and operating conditions.
