The recommended PCB layout and thermal management for the HMC881ALP5E can be found in the 'PCB Layout and Thermal Management' section of the device's evaluation board documentation. It is essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
To optimize the power supply decoupling, use a combination of high-frequency and low-frequency capacitors (e.g., 100nF and 10uF) placed close to the device's power pins. Additionally, use a low-ESR capacitor (e.g., 10uF) on the Vcc pin to reduce voltage droop during high-current switching.
The HMC881ALP5E is rated for operation from -40°C to 85°C. However, it is essential to consider the device's thermal derating and ensure that the junction temperature does not exceed 125°C to maintain reliability and performance.
To troubleshoot common issues, start by verifying the PCB layout and ensuring that it meets the recommended guidelines. Check the power supply decoupling and ensure that it is adequate. Use a spectrum analyzer to identify any unwanted oscillations or noise. Consult the device's application notes and evaluation board documentation for additional troubleshooting guidance.
To characterize the HMC881ALP5E, use a high-speed oscilloscope (e.g., 10 GHz bandwidth) with a low-capacitance probe, a spectrum analyzer (e.g., 26.5 GHz bandwidth), and a signal generator (e.g., 20 GHz bandwidth). Ensure that the test equipment is calibrated and configured correctly to obtain accurate measurements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
HMC881ALP5E Overview

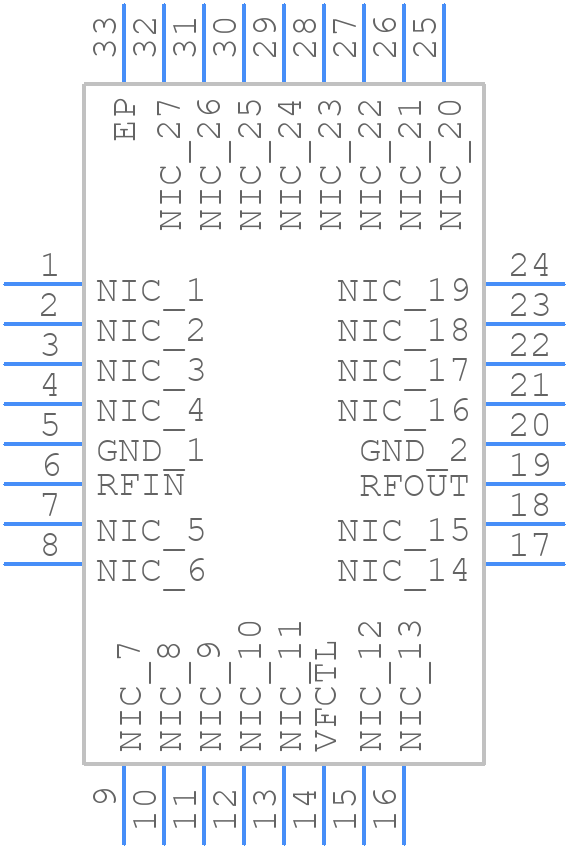

Use the download button to access the HMC881ALP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC88,
or try a keyword search, such as Tunable Filters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
