HMC882ALP5E - Analog Devices

Description: Active Filters LPF, Tunable, 4.5 to 7.6 GHz

Download HMC882ALP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

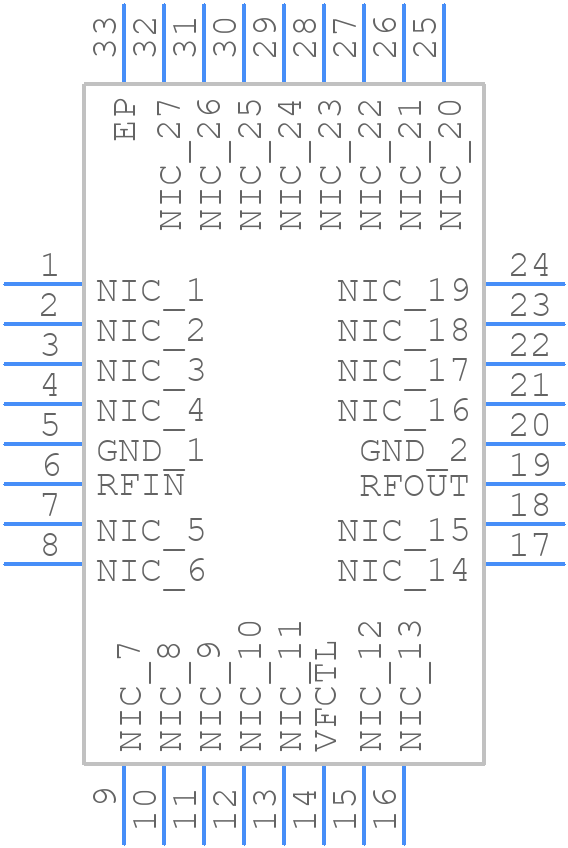

HMC882ALP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC882ALP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-12)-+-++
click to zoom
3D Models
HMC882ALP5E - Analog Devices - 3D model - Quad Flat No-Lead - (CP-32-12)-+-++
click to zoom

HMC882ALP5E Details

  • Manufacturer Part Number:

    HMC882ALP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Average Input Power:

    0.01 W

  • Filter Type:

    TUNABLE LPF
