HMC890LP5E - Analog Devices

Description: Analog Devices Hittite HMC890LP5E, Active Filter, Band Pass Filter, 32-Pin QFN

Download HMC890LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

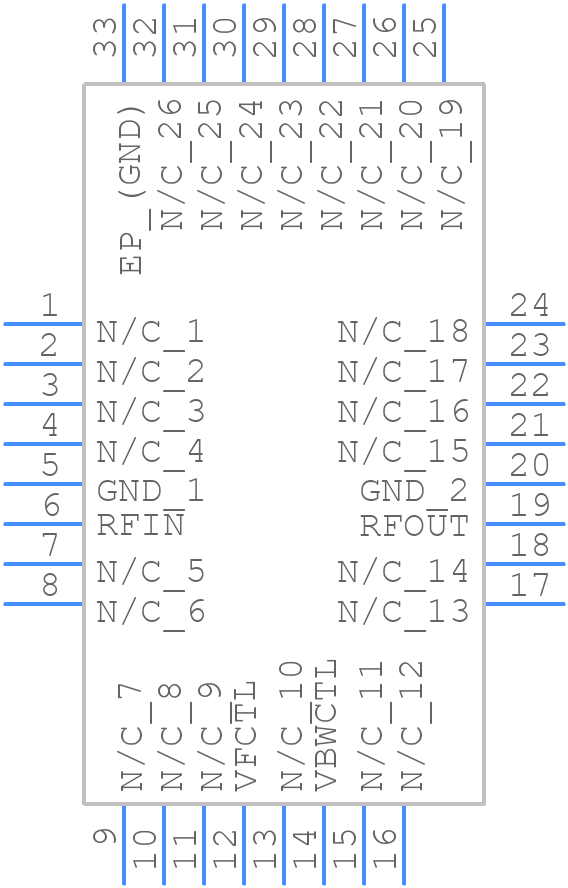

HMC890LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC890LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Lead 5x5mm SMT (H890)
click to zoom
3D Models
HMC890LP5E - Analog Devices - 3D model - Quad Flat No-Lead - 32 Lead 5x5mm SMT (H890)
click to zoom

HMC890LP5E Details

  • Manufacturer Part Number:

    HMC890LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC PACKAGE-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Average Input Power:

    0.01 W

  • Center or Cutoff Frequency (fo/fc):

    1500 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    1 mm

  • Input Impedance:

    50 OHM

  • JESD-609 Code:

    e3

  • Length:

    5.1 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Terminal Finish:

    Matte Tin (Sn)

  • Width:

    5.1 mm

HMC890LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the VCC and VEE pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (VBIAS) is set to the recommended 3.3V or 5V, depending on the application.
  • The HMC890LP5E can handle up to 30dBm of input power. However, it's recommended to operate at a maximum of 20dBm to ensure optimal performance and prevent damage to the device.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the device is properly biased and decoupled. Also, check the input and output impedance matching to ensure optimal performance.
  • The recommended operating temperature range for the HMC890LP5E is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC890LP5E Overview

Use the download button to access the HMC890LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC89, or try a keyword search, such as General Purpose Passive Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
