HMC891ALP5E - Analog Devices

Description: Active Filters 2 to 3.5 GHz Tunable BPF

Download HMC891ALP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

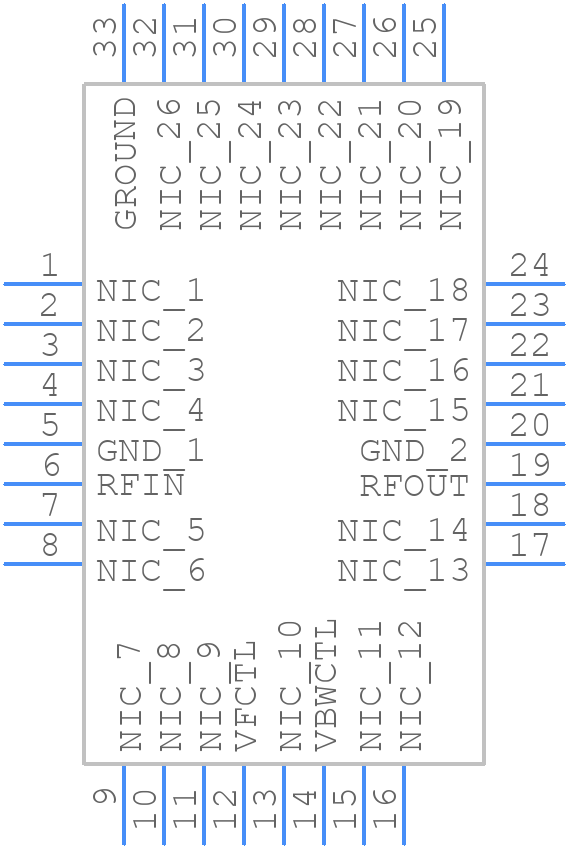

HMC891ALP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC891ALP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
HMC891ALP5E - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

HMC891ALP5E Details

  • Manufacturer Part Number:

    HMC891ALP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 3dB Bandwidth:

    9%

  • Average Input Power:

    0.01 W

  • Filter Type:

    TUNABLE BPF

  • Height:

    0.75 mm

  • Input/Output Impedance:

    50 OHM

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Tuning Frequency-Max:

    3400 MHz

  • Tuning Frequency-Min:

    1950 MHz

  • Width:

    5 mm

HMC891ALP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF and 1uF capacitors, respectively. The recommended bias voltage is 5V, and the current limit should be set to 100mA.
  • The HMC891ALP5E can handle up to 2W of power. However, it's recommended to derate the power handling to 1.5W to ensure reliable operation.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the power supply is clean and well-regulated. Verify the bias voltage and current are within the recommended range. Use a spectrum analyzer to identify any spurious signals.
  • Yes, the HMC891ALP5E can be used in a push-pull configuration. However, ensure the output stage is properly matched and the load is impedance-matched to avoid oscillations.
