HMC892ALP5E - Analog Devices

Description: Active Filters 3 to 6.5 GHz Tunable BPF

Download HMC892ALP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

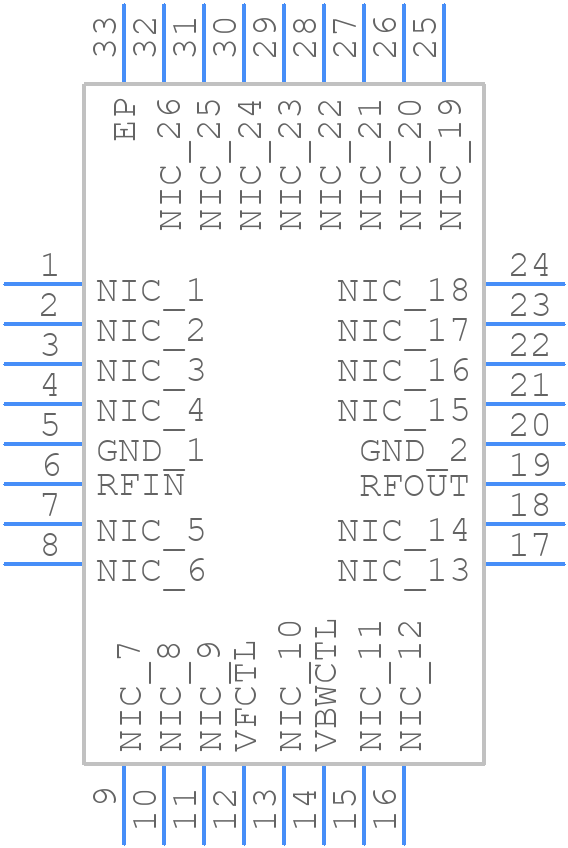

HMC892ALP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC892ALP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12)
click to zoom
3D Models
HMC892ALP5E - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package [LFCSP] 5 mm × 5 mm Body and 0.75 mm Package Height (CP-32-12)
click to zoom

HMC892ALP5E Details

  • Manufacturer Part Number:

    HMC892ALP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • 3dB Bandwidth:

    8.7%

  • Average Input Power:

    0.01 W

  • Filter Type:

    TUNABLE BPF

  • Height:

    0.75 mm

  • Input/Output Impedance:

    50 OHM

  • Insertion Loss-Max:

    9.5 dB

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Tuning Frequency-Max:

    6250 MHz

  • Tuning Frequency-Min:

    3450 MHz

  • Width:

    5 mm

HMC892ALP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC892ALP5E requires a single positive supply voltage (Vcc) between 3.3V and 5V. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC892ALP5E can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC892ALP5E has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and matched to the device's input/output impedance.
  • The typical current consumption of the HMC892ALP5E is around 350mA at 3.3V supply voltage, but this can vary depending on the operating frequency and mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC892ALP5E Overview

Use the download button to access the HMC892ALP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC89, or try a keyword search, such as Tunable Filters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
