HMC897LP4E footprint, schematic symbol and 3D model by Analog Devices

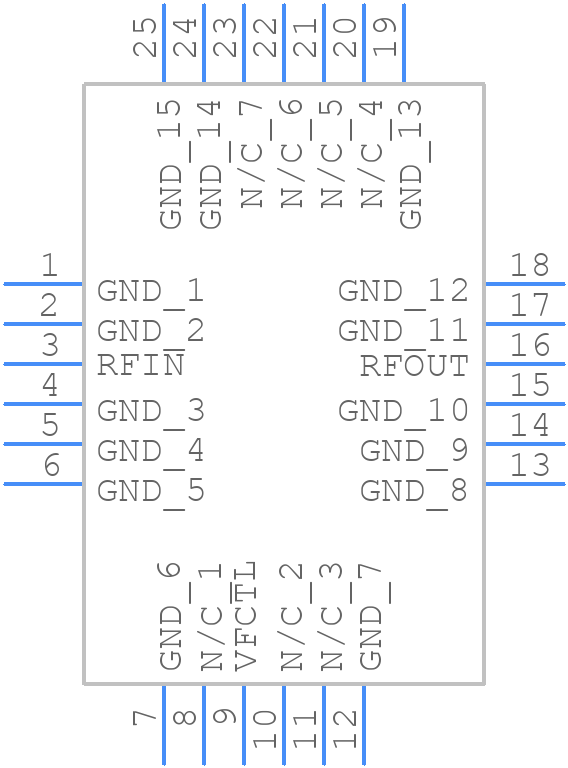

Symbol

click to zoom

PCB Footprints

HMC897LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4x4 mm SMT-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC897LP4E
Part Number HMC897LP4E
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 24 Lead 4x4 mm SMT-1
Released Date May 16, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

HMC897LP4E Details

Manufacturer Part Number:
HMC897LP4E
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
0
3dB Bandwidth:
18%
Average Input Power:
0.501 W
Filter Type:
TUNABLE BPF
Height:
1 mm
Input/Output Impedance:
50 OHM
JESD-609 Code:
e3
Length:
4.1 mm
Mounting Type:
SURFACE MOUNT
Number of Sections-Max:
1
Number of Sections-Min:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Terminal Finish:
Matte Tin (Sn)
Tuning Frequency-Max:
19000 MHz
Tuning Frequency-Min:
9000 MHz
Width:
4.1 mm
