HMC902LP3ETR - Analog Devices

Description: RF Amp Single LNA 11GHz 4.5V 16-Pin LFCSP EP T/R

Download HMC902LP3ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

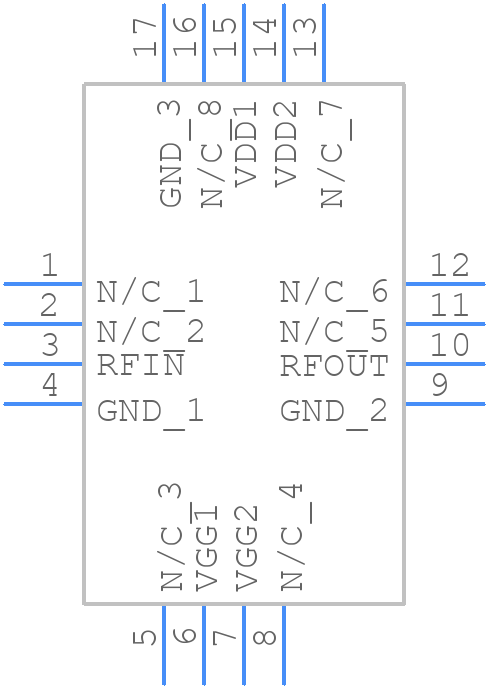

HMC902LP3ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC902LP3ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 LEAD QFN
click to zoom
3D Models
HMC902LP3ETR - Analog Devices - 3D model - Quad Flat No-Lead - 16 LEAD QFN
click to zoom

HMC902LP3ETR Details

  • Manufacturer Part Number:

    HMC902LP3ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, LEADLESS, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    17 dB

  • Input Power-Max (CW):

    10 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    10000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    3.5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    110 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

HMC902LP3ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC902LP3ETR requires a single 3.3V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC902LP3ETR can handle input powers up to +10 dBm. Exceeding this limit may cause damage to the device.
  • To optimize for low noise figure, ensure the device is operated at the recommended bias current, and that the input is properly matched to 50 ohms. Additionally, use a high-quality, low-noise power supply.
  • The HMC902LP3ETR is rated for operation from -40°C to +85°C. Operating outside this range may affect device performance and reliability.
