![HMC903LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.85 mm Package Height](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC903LP3E
- Part Number HMC903LP3E
- Manufacturer Analog Devices
- Pin Count 17
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 16-Lead Lead Frame Chip Scale Package [LFCSP] 3 mm × 3 mm Body and 0.85 mm Package Height
- Released Date Feb 26, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC903LP3E Details
-
Manufacturer Part Number:
HMC903LP3E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
3 X 3 MM, ROHS COMPLIANT, PLASTIC, LEADLESS, SMT, 16 PIN
-
Pin Count:
16
-
Manufacturer Package Code:
HCP-16-1
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC903LP3E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
Ensure the Vcc and Vee pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (Vtune) is set to the recommended 2.5V to 5V range.
-
The HMC903LP3E can handle up to 30dBm of input power. Exceeding this limit may cause damage to the device.
-
Check the PCB layout for any signs of resonance or oscillation. Ensure the device is properly biased and decoupled. Also, check for any signs of overheating or thermal issues.
-
Yes, the HMC903LP3E can be used in a push-pull configuration, but ensure the device is properly biased and decoupled. Also, ensure the output stage is properly matched to the load impedance.
Trust Checks
Community Provided
System Verified
Community Approved
HMC903LP3E Overview

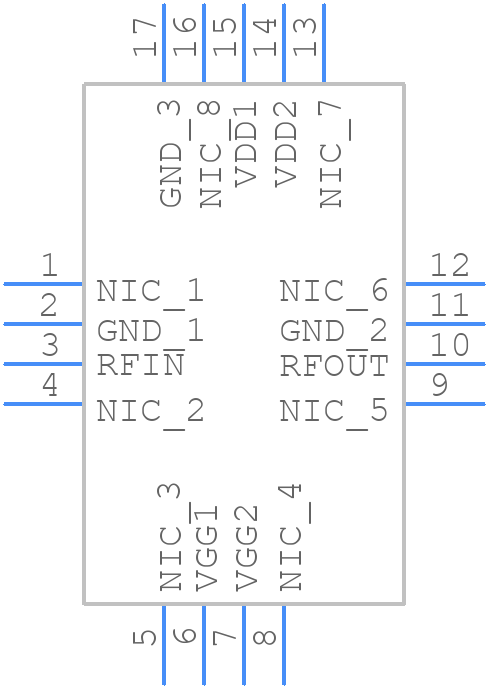

Use the download button to access the HMC903LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC90,
or try a keyword search, such as RF/Microwave Amplifiers
