HMC904LC5 - Analog Devices

Description: Up-Down Converters GaAs MMIC I/Q Downconverter, 17 - 24 GHz

Download HMC904LC5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

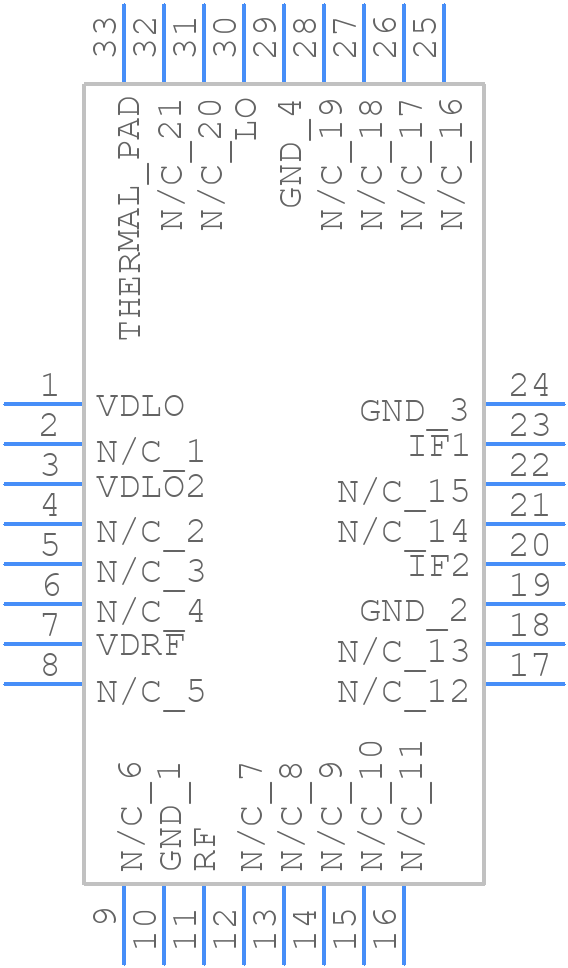

Symbol
HMC904LC5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC904LC5 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HMC904LC5
click to zoom
3D Models
HMC904LC5 - Analog Devices - 3D model - Quad Flat No-Lead - HMC904LC5
click to zoom

HMC904LC5 Details

  • Manufacturer Part Number:

    HMC904LC5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    5 X 5 MM, ROHS COMPLIANT, LEADLESS, SMT-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    E-32-1

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    9 dB

  • IF Frequency-Max:

    3500 MHz

  • Input Power-Min (CW):

    2 dBm

  • JESD-609 Code:

    e4

  • LO Tunable:

    YES

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF Input Frequency-Max:

    24000 MHz

  • RF Input Frequency-Min:

    17000 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

HMC904LC5 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Use a low-noise voltage regulator, decouple the power supply with 10uF and 100nF capacitors, and keep the device away from noise sources such as switching regulators and high-frequency circuits.
  • The HMC904LC5 is rated for operation from -40°C to 85°C, but it's recommended to derate the device for reliable operation above 70°C.
  • Yes, but the device's performance may be affected. The HMC904LC5 is optimized for 50 ohm systems, but it can be used in non-50 ohm systems with proper impedance matching and signal conditioning.
  • Use a spectrum analyzer to check for spurious signals, verify the power supply voltage and current, and check for proper PCB layout and component placement.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC904LC5 Overview

Use the download button to access the HMC904LC5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC90, or try a keyword search, such as RF/Microwave Up/Down Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
