HMC909LP4ETR - Analog Devices

Description: RF Detector RMS pow Detector, DC to 5.8GHz

Download HMC909LP4ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

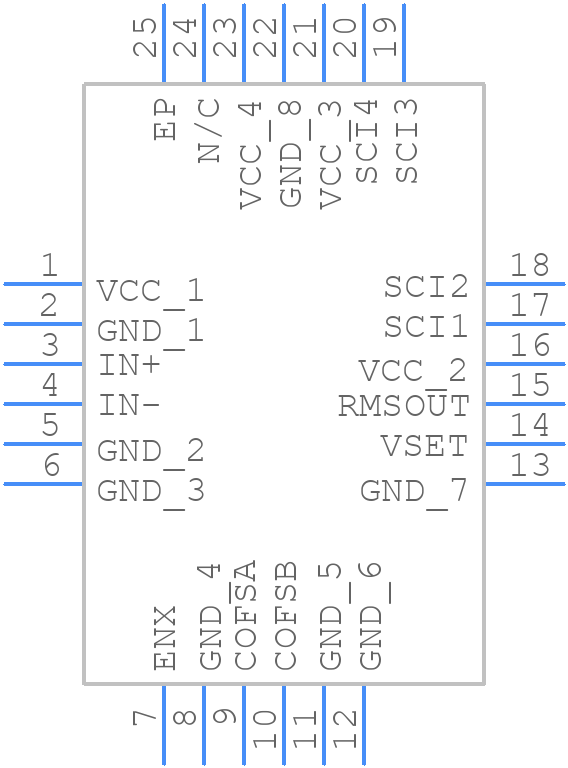

HMC909LP4ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC909LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H909
click to zoom
3D Models
HMC909LP4ETR - Analog Devices - 3D model - Quad Flat No-Lead - H909
click to zoom

HMC909LP4ETR Details

  • Manufacturer Part Number:

    HMC909LP4ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    5800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC909LP4ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • The HMC909LP4ETR requires a single 5V supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 0.1uF and 10uF capacitors to minimize noise and ripple.
  • The HMC909LP4ETR can support data rates up to 10.3125 Gbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal integrity.
  • Use a high-speed oscilloscope to measure the signal quality and jitter. Check the PCB layout for signal integrity issues, and ensure the power supply is clean and regulated. Consult the datasheet and application notes for troubleshooting guidelines.
  • The HMC909LP4ETR is not specifically designed for radiation-hardened applications. Consult with Analog Devices Inc for radiation-hardened alternatives or custom solutions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC909LP4ETR Overview

Use the download button to access the HMC909LP4ETR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC90, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
