HMC932LP4E - Analog Devices

Description: Wide Bandwidth: 12 - 18 GHz 390° Phase Shift Low Insertion Loss: 4 dB Low Phase Error: ±10 deg Typ. Single Positive Voltage Control 24 Lead 4x4 mm QFN Package: 16 mm²

Download HMC932LP4E Model

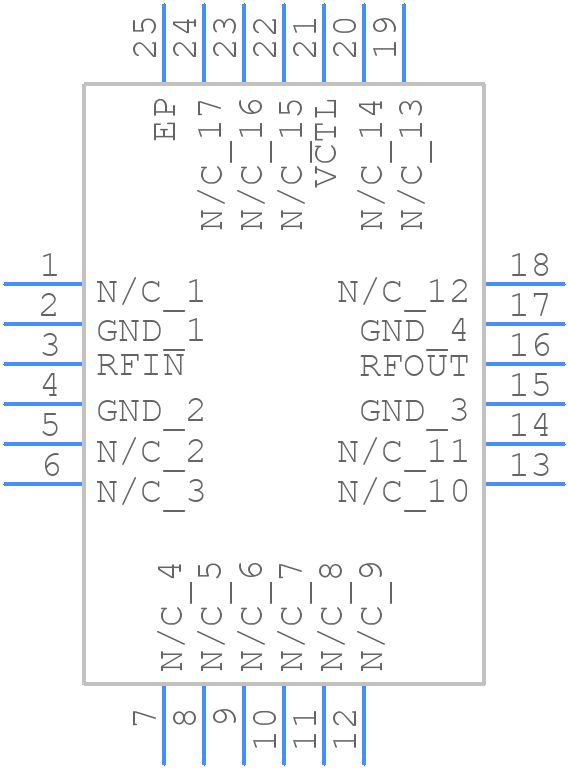

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC932LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4x4 mm QFN Package: 16 mm²
click to zoom
3D Models
HMC932LP4E - Analog Devices  - 3D model - Quad Flat No-Lead - 24 Lead 4x4 mm QFN Package: 16 mm²
click to zoom

HMC932LP4E Details

  • Manufacturer Part Number:

    HMC932LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    32 dBm

  • Insertion Loss-Max:

    4 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    18000 MHz

  • Operating Frequency-Min:

    12000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Phase Shift-Max:

    360 deg

  • RF/Microwave Device Type:

    PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.5

HMC932LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC932LP4E requires a single 3.3V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be connected to a clean power source, and the Vee pin should be connected to a quiet ground.
  • The HMC932LP4E can handle input powers up to +20 dBm. However, it's recommended to operate the device at input powers below +15 dBm to ensure optimal performance and prevent damage.
  • The HMC932LP4E has a wideband response, but it can be optimized for a specific frequency band by adjusting the external matching network. Use a network analyzer to measure the device's S-parameters and optimize the matching network for the desired frequency band.
  • The HMC932LP4E is specified to operate from -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC932LP4E Overview

Use the download button to access the HMC932LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC93, or try a keyword search, such as RF/Microwave Phase Shifters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
