HMC934LP5E - Analog Devices

Description: Phase Detectors / Shifters Analog Phase Shifter 1-2 GHz

Download HMC934LP5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

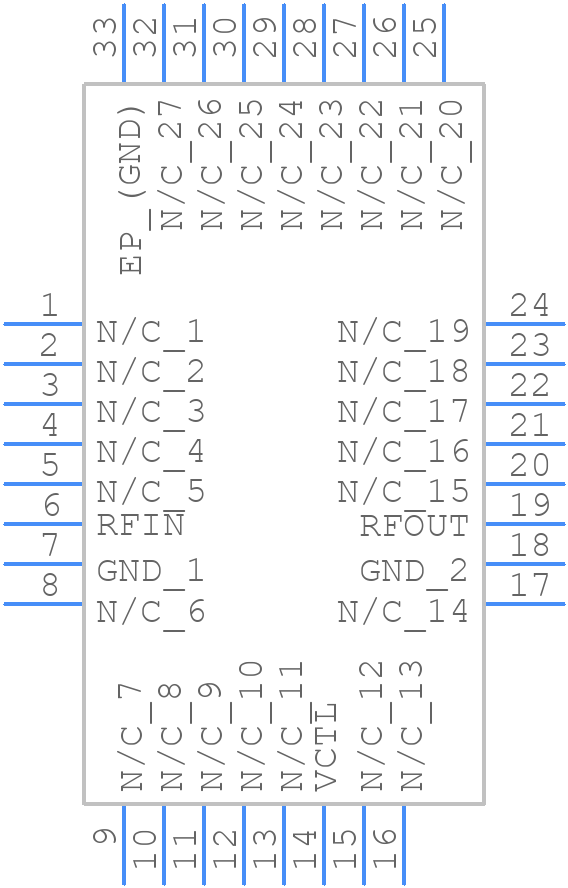

HMC934LP5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC934LP5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32 Lead 5x5mm SMT (H890)
click to zoom
3D Models
HMC934LP5E - Analog Devices - 3D model - Quad Flat No-Lead - 32 Lead 5x5mm SMT (H890)
click to zoom

HMC934LP5E Details

  • Manufacturer Part Number:

    HMC934LP5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Insertion Loss-Max:

    3.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    2000 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Phase Shift-Max:

    360 deg

  • RF/Microwave Device Type:

    PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.43

HMC934LP5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the current limit. Also, ensure the input and output pins are properly terminated.
  • The HMC934LP5E can operate from -40°C to 85°C, but the performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Check the PCB layout for any signal integrity issues, ensure proper decoupling and termination, and verify the input and output impedances match the recommended values. Also, check for any voltage supply issues or noise coupling.
  • Yes, the HMC934LP5E can be used in a push-pull configuration, but ensure the output stage is properly biased and the input signals are properly terminated to avoid oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC934LP5E Overview

Use the download button to access the HMC934LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC93, or try a keyword search, such as RF/Microwave Phase Shifters
