- Part Number HMC939ALP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CP-24-16-2022
- Released Date Jun 29, 2023
- Last Modified Date Oct 1, 2025 11:37 AM UTC
- Pinout / Pin List Click Here (Member Only)
HMC939ALP4E Details
-
Manufacturer Part Number:
HMC939ALP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MO-220VGGD-8, 24 PIN
-
Pin Count:
24
-
Manufacturer Package Code:
CP-24-16
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
HMC939ALP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
-
Use a high-quality, low-noise power supply, and ensure proper impedance matching between the device and the load. Also, optimize the gain and attenuation settings for the specific application.
-
The optimal gain and attenuation settings depend on the specific application and signal characteristics. Consult the datasheet and application notes for guidance, and experiment with different settings to find the optimal configuration.
-
Use proper shielding, grounding, and decoupling techniques. Ensure that the device is placed away from noise sources, and use noise filters or shielding if necessary.
-
The HMC939ALP4E is rated for operation from -40°C to +85°C. However, the device's performance may degrade at extreme temperatures, so ensure proper thermal management and consider derating the device for high-temperature applications.
Trust Checks
Community Provided
System Verified
Community Approved
HMC939ALP4E Overview

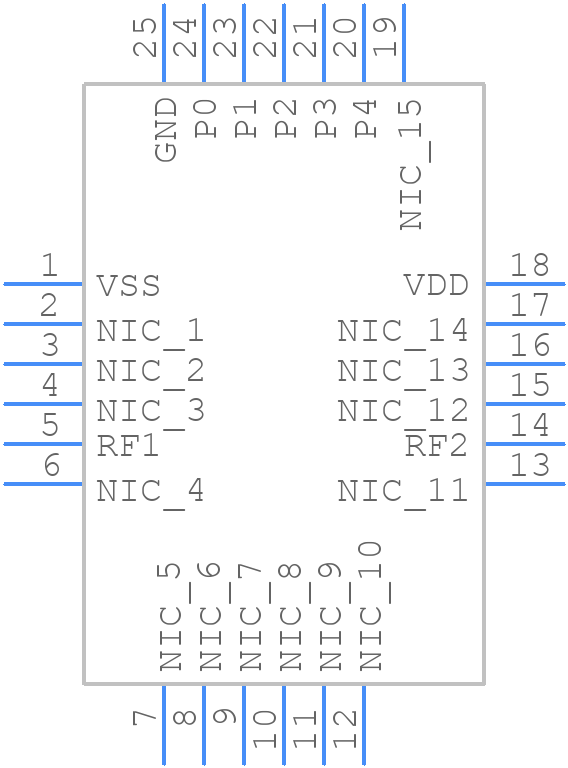

Use the download button to access the HMC939ALP4E schematic symbol, PCB footprint, and 3D model.
