HMC948LP3E - Analog Devices

Description: Logarithmic Amplifiers Log Det, 1-18GHz

Download HMC948LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

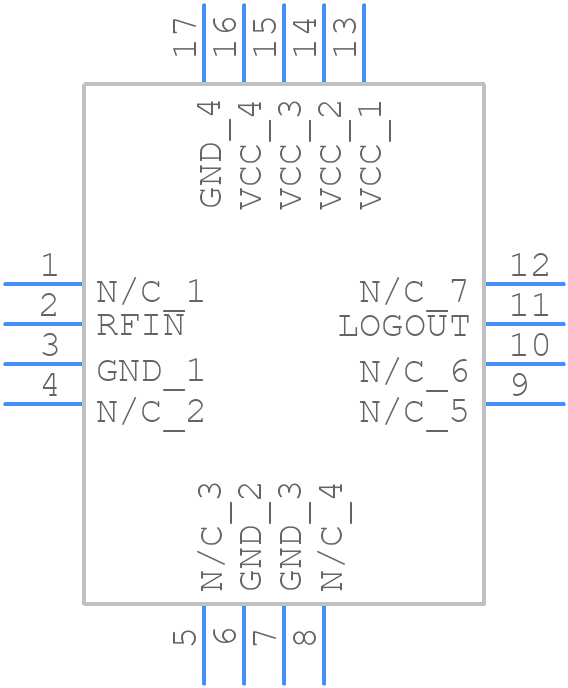

HMC948LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC948LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3x3mm SMT Package
click to zoom
3D Models
HMC948LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3x3mm SMT Package
click to zoom

HMC948LP3E Details

  • Manufacturer Part Number:

    HMC948LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, PLASTIC, SMT, 16 PIN

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    23000 MHz

  • Operating Frequency-Min:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    POSITIVE

  • Output Voltage Sensitivity-Min:

    0.9 mV/mW

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    LINEAR DETECTOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC948LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are decoupled with 100nF capacitors, and the Iset pin is connected to a 10kΩ resistor to set the current limit. Also, ensure the input and output pins are properly terminated.
  • The HMC948LP3E can handle up to 1W of power, but it's recommended to derate the power handling to 0.5W to ensure reliable operation.
  • Check for proper PCB layout, decoupling, and termination. Ensure the input and output impedances are matched, and the device is properly biased. Use a spectrum analyzer to identify any unwanted frequency components.
  • Yes, the HMC948LP3E can be used in a push-pull configuration, but ensure the output stage is properly biased and the output impedance is matched to the load.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC948LP3E Overview

Use the download button to access the HMC948LP3E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC94, or try a keyword search, such as RF/Microwave Detectors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
