- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC951ALP4E
- Part Number HMC951ALP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - CP-24-16-
- Released Date Jan 31, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC951ALP4E Details
-
Manufacturer Part Number:
HMC951ALP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
LFCSP-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-3
-
Country Of Origin:
South Korea
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC951ALP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
Ensure the Vcc and Vee pins are connected to a stable power supply, and the Vref pin is connected to a stable reference voltage. Also, ensure the input and output impedance matching is correct.
-
The HMC951ALP4E can operate from -40°C to +85°C, but the performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.
-
Check the PCB layout for any signal integrity issues, ensure proper power supply decoupling, and verify the input and output impedance matching. Also, check for any signs of overheating or thermal issues.
-
Yes, but ensure the input and output impedance matching is adjusted accordingly to maintain optimal performance. Consult the datasheet for impedance matching guidelines.
Trust Checks
Community Provided
System Verified
Community Approved
HMC951ALP4E Overview

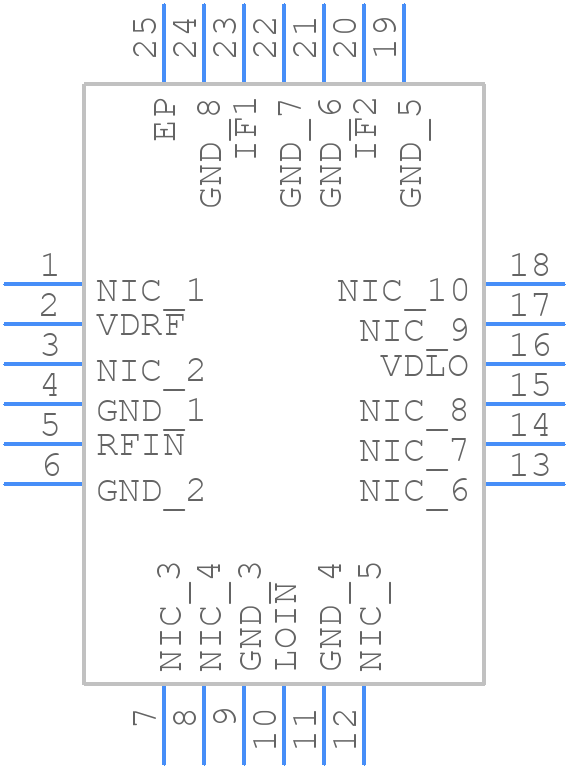

Use the download button to access the HMC951ALP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC95,
or try a keyword search, such as RF/Microwave Up/Down Converters
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
