HMC951BLP4E - Analog Devices

Description: Up-Down Converters Down-Converter translation

Download HMC951BLP4E Model

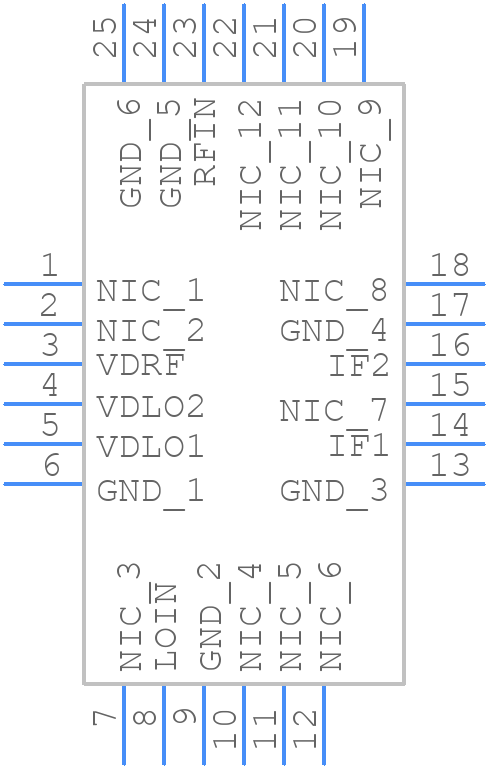

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC951BLP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4 mm x 4 mm SMT
click to zoom
3D Models
HMC951BLP4E - Analog Devices  - 3D model - Quad Flat No-Lead - 24 Lead 4 mm x 4 mm SMT
click to zoom

HMC951BLP4E Details

  • Manufacturer Part Number:

    HMC951BLP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    10 dB

  • IF Frequency-Max:

    3500 MHz

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Noise Figure-Max:

    2.5 dB

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    3.5 V

  • RF Input Frequency-Max:

    8600 MHz

  • RF Input Frequency-Min:

    5600 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Supply Current-Max:

    200 mA

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

HMC951BLP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • Ensure the Vcc and Vee pins are properly decoupled with 100nF and 1uF capacitors, respectively. Also, ensure the bias voltage (Vbias) is set to the recommended 3.3V or 5V, depending on the application.
  • The HMC951BLP4E can handle up to 30dBm of input power. Exceeding this limit may cause damage to the device.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the device is properly biased and decoupled. Also, check the input and output impedance matching to ensure optimal performance.
  • Yes, the HMC951BLP4E can be used in a push-pull configuration to achieve higher output power. However, ensure the device is properly biased and decoupled to avoid oscillations.
