HMC951LP4E - Analog Devices

Description: Analog Devices Hittite HMC951LP4E, Up-Down Converter & Mixer Circuit 12.1GHz Gain=-3 dBm 2 → 16 V 24-Pin SMT

Download HMC951LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

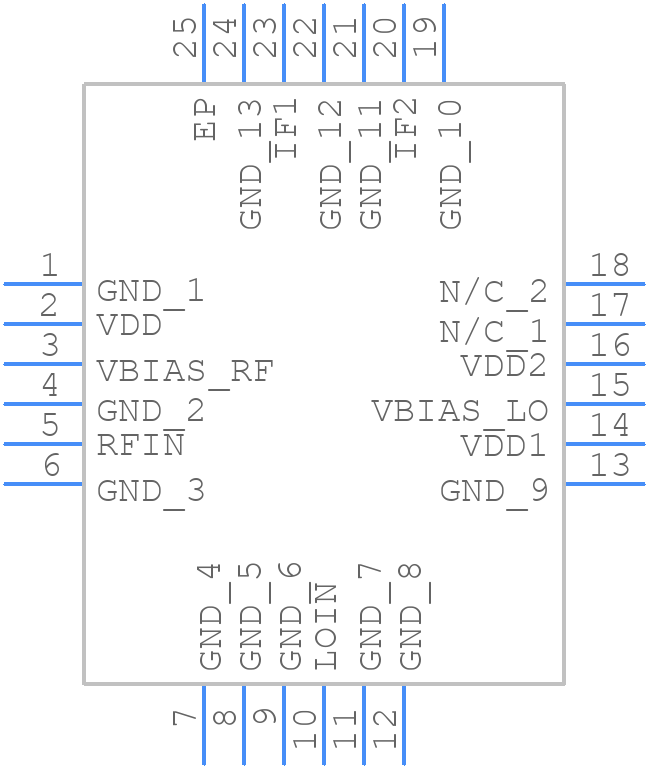

HMC951LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC951LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24-Pin QFN
click to zoom
3D Models
HMC951LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24-Pin QFN
click to zoom

HMC951LP4E Details

  • Manufacturer Part Number:

    HMC951LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SMT-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Down Conversion Gain-Min:

    10 dB

  • IF Frequency-Max:

    3500 MHz

  • Input Power-Min (CW):

    15 dBm

  • JESD-609 Code:

    e3

  • LO Tunable:

    YES

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • RF Input Frequency-Max:

    8600 MHz

  • RF Input Frequency-Min:

    5600 MHz

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)

HMC951LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a common mode choke or a ferrite bead to filter the power supply lines.
  • The HMC951LP4E requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The Vcc pin should be biased to 5V, and the Vee pin should be connected to ground.
  • The maximum input power that the HMC951LP4E can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • The HMC951LP4E is a broadband amplifier, but it can be optimized for a specific frequency band by adjusting the input and output matching networks. Use a network analyzer to optimize the matching networks for the desired frequency band.
  • The recommended operating temperature range for the HMC951LP4E is -40°C to +85°C. Operating the device outside this range may affect its performance or reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC951LP4E Overview

Use the download button to access the HMC951LP4E schematic symbol, PCB footprint, and 3D model.
