HMC952ALP5GE - Analog Devices

Description: RF Amplifier 9-13.3GHz 2W POWER AMPLIFIER

Download HMC952ALP5GE Model

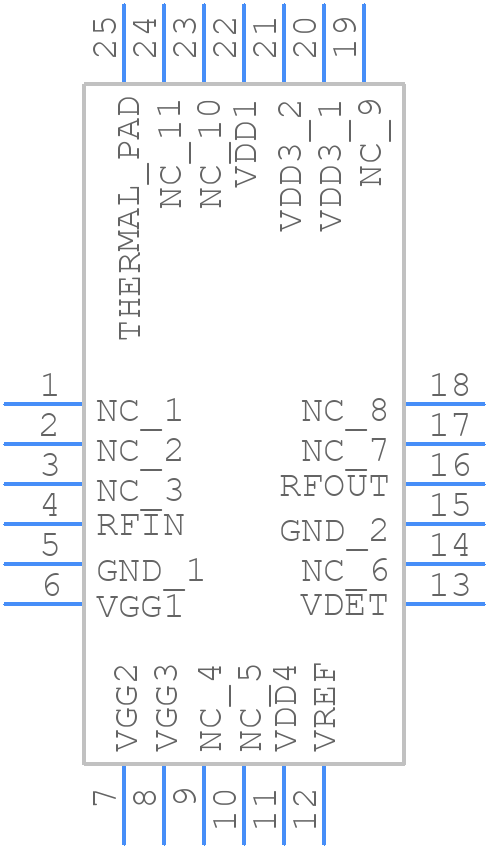

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HMC952ALP5GE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H952A
click to zoom
3D Models
HMC952ALP5GE - Analog Devices  - 3D model - Quad Flat No-Lead - H952A
click to zoom

HMC952ALP5GE Details

  • Manufacturer Part Number:

    HMC952ALP5GE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MO-220VHHC-1, 24 PIN

  • Pin Count:

    24

  • Manufacturer Package Code:

    CP-24-20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    28 dB

  • Input Power-Max (CW):

    24 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    14000 MHz

  • Operating Frequency-Min:

    8000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.2SQ,25

  • Power Supplies:

    6 V

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

HMC952ALP5GE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a Smith chart to design and optimize the matching networks for maximum gain and efficiency.
  • Derate the voltage by 10-15% and the current by 20-25% to ensure high reliability and long-term operation. Consult the datasheet and application notes for specific guidelines.
  • Use a shielded enclosure, keep the device away from other RF sources, and use EMI filters and absorbers as needed. Ensure good grounding and decoupling to minimize radiation and susceptibility.
  • Use a vector network analyzer (VNA) to measure S-parameters, and a spectrum analyzer to measure output power and spectral purity. Consult the datasheet and application notes for specific test procedures.
