HMC960LP4E - Analog Devices

Description: Analog Devices Hittite HMC960LP4E, RF Amplifier Gain 2-channel 100 MHz, 24-Pin SMT

Download HMC960LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

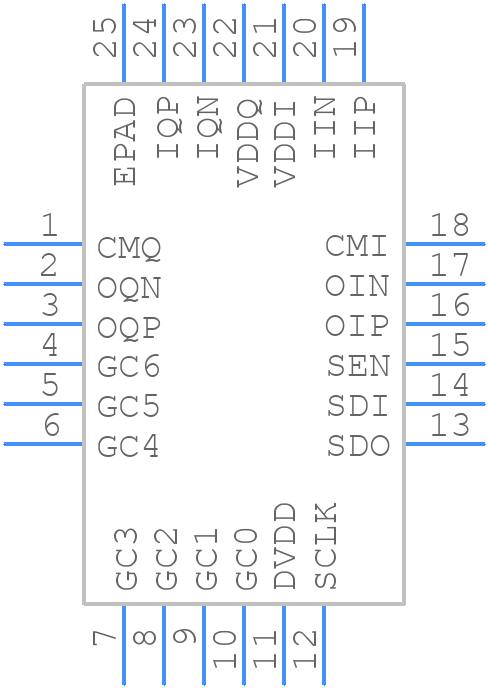

HMC960LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC960LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - H960
click to zoom
3D Models
HMC960LP4E - Analog Devices - 3D model - Quad Flat No-Lead - H960
click to zoom

HMC960LP4E Details

  • Manufacturer Part Number:

    HMC960LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    LOW NOISE

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND HIGH POWER

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

HMC960LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC960LP4E requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and decouple the power pins with 0.1uF and 10uF capacitors.
  • The HMC960LP4E can support data rates up to 12.5 Gbps. However, the actual data rate achievable depends on the system design, PCB layout, and signal integrity.
  • Use a high-speed oscilloscope to measure the signal quality and jitter. Check the PCB layout and signal routing for any issues. Also, ensure the power supply is clean and well-regulated.
  • The HMC960LP4E is not specifically designed for radiation-hardened applications. However, Analog Devices Inc. offers other products that are designed for radiation-hardened applications. Consult with Analog Devices Inc. for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC960LP4E Overview

Use the download button to access the HMC960LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC96, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
