HMC967LP4ETR footprint, schematic symbol and 3D model by Analog Devices

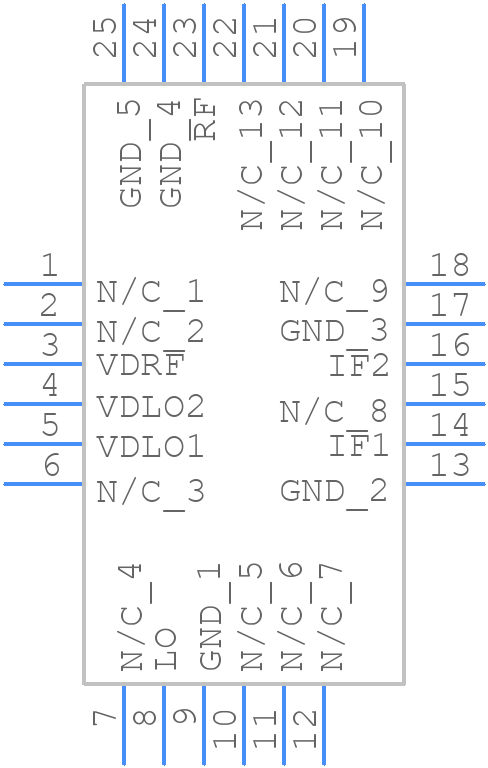

Symbol

click to zoom

PCB Footprints

HMC967LP4ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP_2026-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for HMC967LP4ETR
Part Number HMC967LP4ETR
Manufacturer Analog Devices
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - LFCSP_2026-1
Released Date Sep 1, 2026
Last Modified Date Sep 1, 2026 2:53 AM UTC
Pinout / Pin List Click Here (Member Only)

HMC967LP4ETR Details

Manufacturer Part Number:
HMC967LP4ETR
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Pin Count:
24
Manufacturer Package Code:
HCP-24-2
Country Of Origin:
South Korea
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
50 Ω
Construction:
COMPONENT
Down Conversion Gain-Min:
11 dB
IF Frequency-Max:
3500 MHz
JESD-609 Code:
e3
LO Tunable:
YES
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
24
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC24,.16SQ,20
Power Supplies:
4.5 V
RF Input Frequency-Max:
24000 MHz
RF Input Frequency-Min:
21000 MHz
RF/Microwave Device Type:
DOWN CONVERTER
Supply Current-Max:
200 mA
Surface Mount:
YES
Technology:
GAAS
Terminal Finish:
Matte Tin (Sn)

HMC967LP4ETR Frequently Asked Questions (FAQs)

Analog Devices provides a recommended PCB layout and thermal management guidelines in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency and high-power applications.
Analog Devices provides a range of application notes and design tools, such as the ADIsimRF design tool, to help optimize the biasing and tuning of the amplifier for specific applications. Additionally, consulting with Analog Devices' technical support or a qualified RF engineer can provide valuable insights and guidance.
Common sources of noise and interference in the HMC967LP4ETR include thermal noise, shot noise, and electromagnetic interference (EMI). To mitigate these effects, use proper PCB layout and shielding, ensure good thermal management, and implement noise-reducing techniques such as filtering and shielding.
To ensure stability, follow the recommended operating conditions, biasing, and tuning guidelines. Additionally, use simulation tools and analysis to identify potential stability issues, and implement stabilizing techniques such as adding resistive loading or using a stabilizing network.
The HMC967LP4ETR is designed to operate in a range of temperatures and environments. However, it's essential to consider the specific operating conditions and potential environmental stresses in your application. Consult with Analog Devices' technical support or a qualified reliability engineer to ensure the amplifier's reliability and ruggedness in harsh environments.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

HMC967LP4ETR Overview

Use the download button to access the HMC967LP4ETR schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like HMC96, or try a keyword search, such as RF/Microwave Up/Down Converters
