HMC973ALP3E - Analog Devices

Description: ANALOG DEVICES - HMC973ALP3E - RF ATTENUATOR, 500MHZ-5GHZ, 25DBM, QFN

Download HMC973ALP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

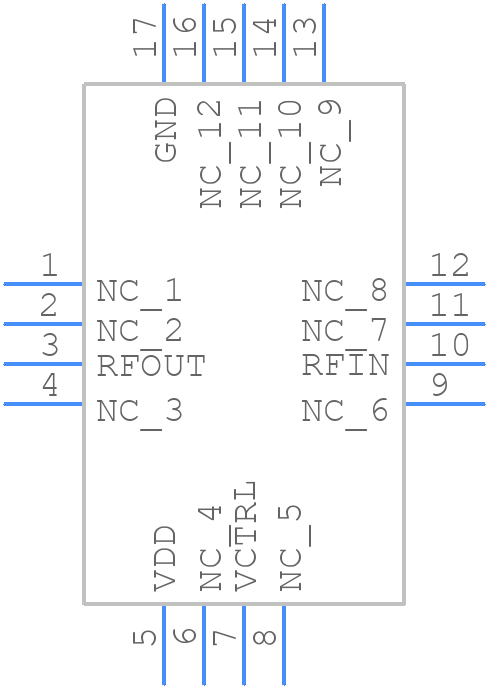

HMC973ALP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC973ALP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 3x3 mm QFN SMT Package_1
click to zoom
3D Models
HMC973ALP3E - Analog Devices - 3D model - Quad Flat No-Lead - 3x3 mm QFN SMT Package_1
click to zoom

HMC973ALP3E Details

  • Manufacturer Part Number:

    HMC973ALP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Attenuation-Nom:

    31 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29 dBm

  • Insertion Loss-Max:

    5.6 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    5000 MHz

  • Operating Frequency-Min:

    500 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    2.1

HMC973ALP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC973ALP3E requires a single 5V power supply. Ensure the voltage supply is clean and regulated, and decouple the power pins with 10nF and 100nF capacitors.
  • The maximum input power is +10 dBm. Exceeding this may cause compression and distortion.
  • The HMC973ALP3E has a serial interface (SPI) for control and monitoring. Use a microcontroller or FPGA with an SPI interface to communicate with the device.
  • The typical settling time is 100 ns. This is the time it takes for the device to settle to its final value after a control voltage change.
