HMC983LP5ETR - Analog Devices

Description: DC - 7 GHz Fractional-N Divider and Frequency Sweeper

Download HMC983LP5ETR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

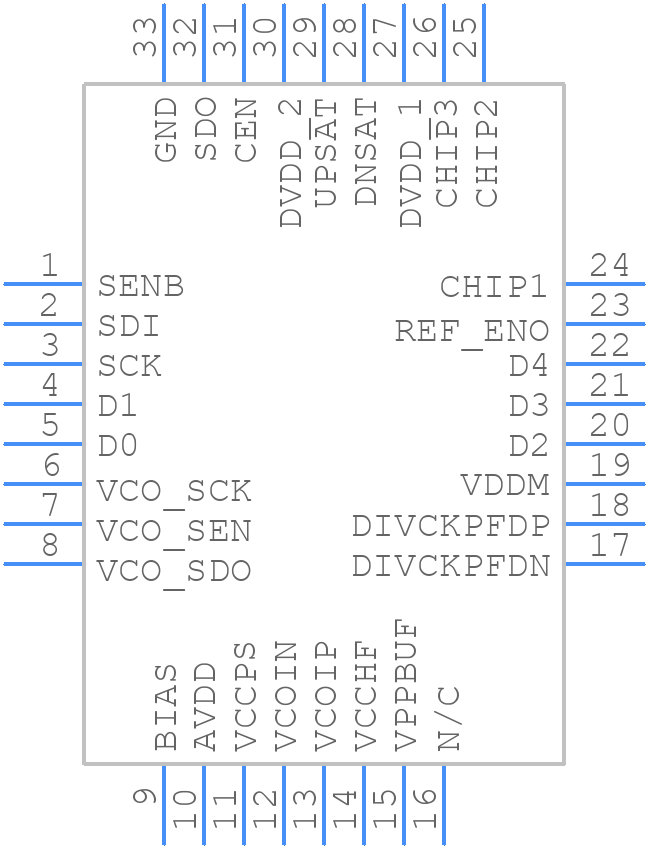

HMC983LP5ETR - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC983LP5ETR - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE(h=1)
click to zoom
3D Models
HMC983LP5ETR - Analog Devices - 3D model - Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE(h=1)
click to zoom

HMC983LP5ETR Details

  • Manufacturer Part Number:

    HMC983LP5ETR

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    32

  • Manufacturer Package Code:

    HCP-32-1

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

HMC983LP5ETR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • The HMC983LP5ETR requires a single 5V power supply. Ensure the power supply is clean and well-regulated. A 10uF capacitor in parallel with a 100nF capacitor is recommended for power supply decoupling.
  • The maximum input power that the HMC983LP5ETR can handle is +10dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • The HMC983LP5ETR has a serial interface that can be connected to a microcontroller's SPI or I2C interface. Ensure the microcontroller's clock speed is within the recommended range of 10kHz to 100kHz.
  • The typical current consumption of the HMC983LP5ETR is 120mA. However, this can vary depending on the operating frequency, input power, and other factors.
