- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC984LP4E
- Part Number HMC984LP4E
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - LFCSP:LEADFRM CHIP SCALE-1
- Released Date Jun 6, 2019
- Last Modified Date Jul 5, 2023 4:22 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC984LP4E Details
-
Manufacturer Part Number:
HMC984LP4E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LCC-24
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-2
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC984LP4E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
-
Use a combination of high-frequency and low-frequency decoupling capacitors (e.g., 100nF and 10uF) placed close to the device's power pins. Ensure the capacitors are rated for high-frequency operation.
-
Use a 50-ohm termination for the input and output signals. For the input, use a DC-blocking capacitor (e.g., 100nF) in series with a 50-ohm resistor. For the output, use a 50-ohm resistor in series with a DC-blocking capacitor (e.g., 100nF).
-
Ensure the device is biased within the recommended operating range (Vcc = 3.3V, Vee = -3.3V). Use a voltage regulator or a voltage reference to maintain a stable bias voltage.
-
Use ESD protection diodes (e.g., TVS diodes) on the input and output pins to protect against electrostatic discharge. Ensure the diodes are rated for high-frequency operation.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
HMC984LP4E Overview

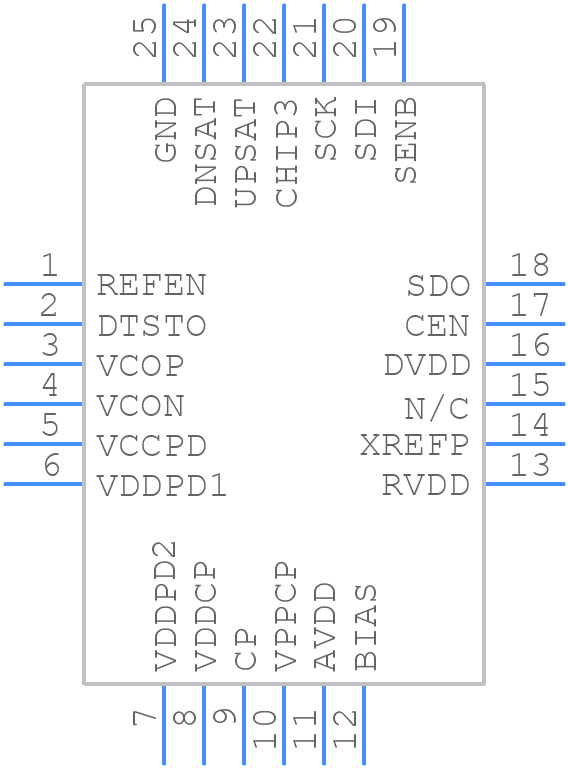

Use the download button to access the HMC984LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC98,
or try a keyword search, such as ATM/SONET/SDH ICs
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
