- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC985ALP4KE
- Part Number HMC985ALP4KE
- Manufacturer Analog Devices
- Pin Count 25
- Part Category Attenuator or Isolator
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - HMC984LP4E**
- Released Date Jan 27, 2023
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC985ALP4KE Details
-
Manufacturer Part Number:
HMC985ALP4KE
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SMT, 24 PIN
-
Pin Count:
24
-
Manufacturer Package Code:
HCP-24-3
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
HMC985ALP4KE Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
-
Use the device's power-down mode, reduce the operating frequency, and optimize the voltage regulator module (VRM) design to minimize power consumption.
-
Use controlled impedance traces, minimize signal reflections, and ensure proper termination and routing to prevent signal degradation and electromagnetic interference (EMI).
-
Use shielding, filtering, and grounding techniques to minimize EMI. Ensure proper PCB layout, component selection, and cable management to reduce radiation and susceptibility.
-
Use a vector signal analyzer, spectrum analyzer, or a logic analyzer to measure frequency response, noise floor, and signal integrity. Ensure proper calibration and setup for accurate measurements.
Trust Checks
Community Provided
System Verified
Community Approved
HMC985ALP4KE Overview

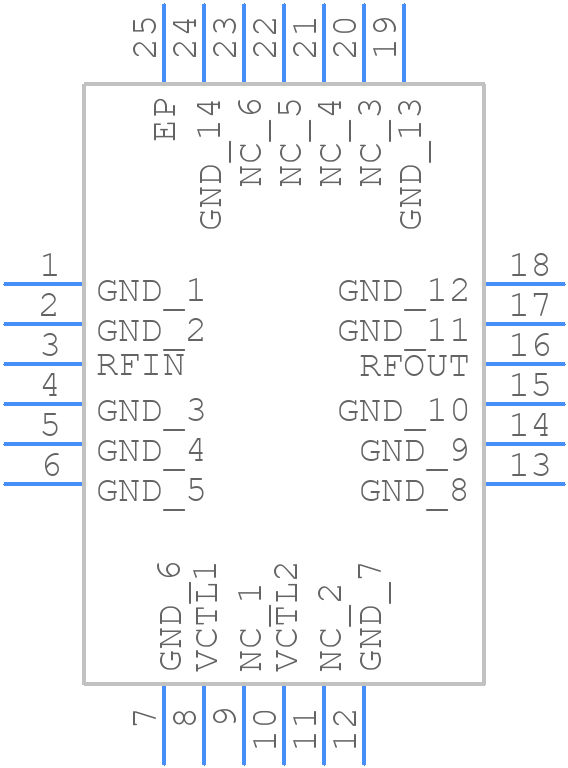

Use the download button to access the HMC985ALP4KE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC98,
or try a keyword search, such as RF/Microwave Attenuators
