HMC985LP4KE - Analog Devices

Description: Analog Devices Hittite HMC985LP4KE, Variable Attenuator, 40dB, 40GHz, 24-Pin SMT

Download HMC985LP4KE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

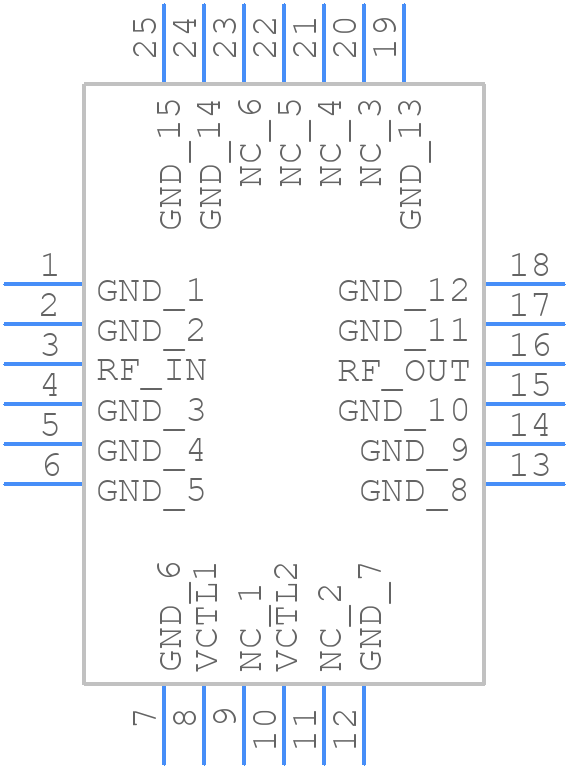

HMC985LP4KE - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC985LP4KE - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 Lead 4x4 mm SMT
click to zoom
3D Models
HMC985LP4KE - Analog Devices - 3D model - Quad Flat No-Lead - 24 Lead 4x4 mm SMT
click to zoom

HMC985LP4KE Details

  • Manufacturer Part Number:

    HMC985LP4KE

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Attenuation-Nom:

    30 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    4.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    40000 MHz

  • Operating Frequency-Min:

    10000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • Terminal Finish:

    Matte Tin (Sn)

  • VSWR-Max:

    1.58

HMC985LP4KE Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
  • The HMC985LP4KE requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
  • The HMC985LP4KE can operate up to 6 GHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout.
  • The HMC985LP4KE has a parallel interface that can be connected to a microcontroller or FPGA. Ensure the interface signals are properly terminated and that the clock and data signals are synchronized.
  • The typical current consumption of the HMC985LP4KE is around 350mA, but this can vary depending on the operating frequency and the specific application.
