HMC988LP3E - Analog Devices

Description: Prescaler Divider 1,2,4,16,32, Variable Delay 4GHz

Download HMC988LP3E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

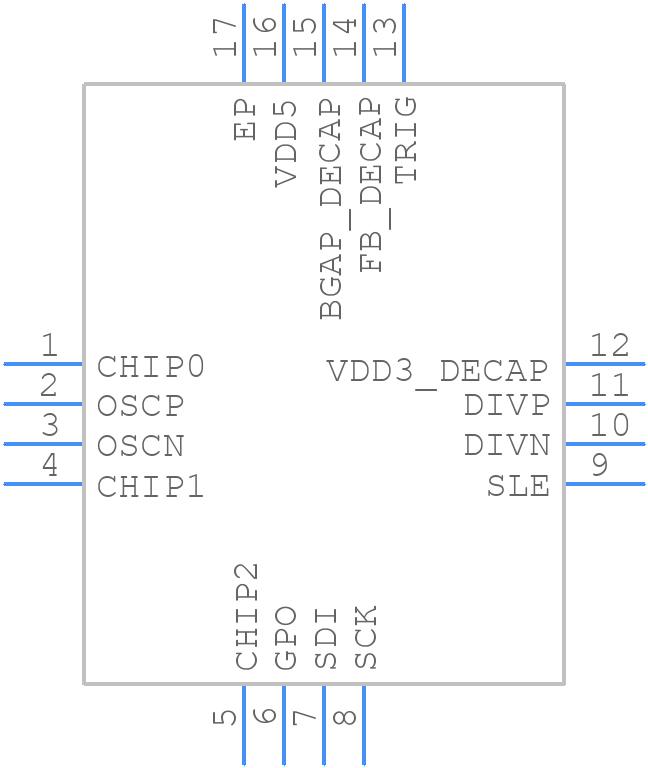

HMC988LP3E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC988LP3E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16 Lead 3x3mm -+
click to zoom
3D Models
HMC988LP3E - Analog Devices - 3D model - Quad Flat No-Lead - 16 Lead 3x3mm -+
click to zoom

HMC988LP3E Details

  • Manufacturer Part Number:

    HMC988LP3E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    HCP-16-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    988

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOGIC CIRCUIT

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.5 V

  • Supply Voltage-Min (Vsup):

    3.1 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

HMC988LP3E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a heat sink and thermal interface material. Refer to the application note AN-1369 for more details.
  • Use a low noise figure amplifier (e.g., HMC974LP3E) as the first stage, followed by the HMC988LP3E. Ensure proper impedance matching and use a high-Q inductor for the output matching network.
  • Use a voltage-controlled current source for biasing. Apply a voltage of 3.3V to 5V to the VDD pin and adjust the current limit resistor (RBIAS) to set the desired current. Refer to the datasheet for the recommended tuning procedure.
  • Use a stability analysis tool (e.g., S-parameters) to ensure the amplifier is unconditionally stable. Add resistive loading or a stability network to prevent oscillations. Refer to the application note AN-1341 for more details.
  • Use a wrist strap or anti-static mat when handling the device. Ensure the PCB has ESD protection diodes and follow proper ESD handling procedures to prevent damage.
