HMC994APM5E - Analog Devices

Description: RF Amplifier IC 0Hz ~ 28GHz 32-LFCSP-CAV (5x5)

Download HMC994APM5E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

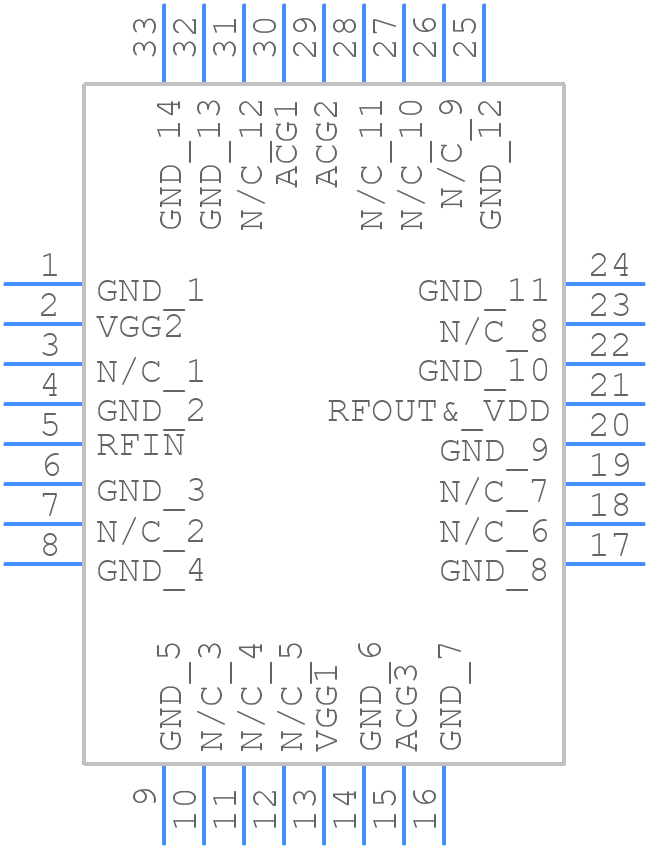

Symbol
HMC994APM5E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC994APM5E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV] 5mm × 5mm and 1.25mm Package Height
click to zoom
3D Models
HMC994APM5E - Analog Devices - 3D model - Quad Flat No-Lead - 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV] 5mm × 5mm and 1.25mm Package Height
click to zoom

HMC994APM5E Details

  • Manufacturer Part Number:

    HMC994APM5E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CG-32-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13 dB

  • Input Power-Max (CW):

    25 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Frequency-Max:

    28000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    10 V

  • RF/Microwave Device Type:

    POWER AMPLIFIER

  • Supply Current-Max:

    250 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    7

HMC994APM5E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and a heat sink if necessary.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a simulation tool like ADS or AWR to design and optimize the matching networks for maximum gain and efficiency.
  • Derate the voltage by 10-15% and the current by 20-25% to ensure reliable operation over the entire operating temperature range.
  • Ensure proper decoupling of the power supply lines, use a low-ESR capacitor for bypassing, and add a series resistor to the output stage to prevent oscillations.
  • Handle the device in an ESD-controlled environment, use an anti-static wrist strap, and follow proper ESD protection procedures during assembly and testing.
