![HMC994LP5E - Analog Devices - 3D model - Quad Flat No-Lead - .32-LEAD LFCSP [5X5X1.45]](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for HMC994LP5E
- Part Number HMC994LP5E
- Manufacturer Analog Devices
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - .32-LEAD LFCSP [5X5X1.45]
- Released Date Nov 9, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
HMC994LP5E Details
-
Manufacturer Part Number:
HMC994LP5E
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
QFN-32
-
Pin Count:
32
-
Manufacturer Package Code:
HCP-32-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Analog Devices Inc
HMC994LP5E Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise coupling.
-
The HMC994LP5E requires a single 5V power supply. Ensure the power supply is clean and well-regulated, and that the device is properly decoupled with 0.1uF and 10uF capacitors.
-
The HMC994LP5E can handle input powers up to +20 dBm. Exceeding this limit may cause damage to the device.
-
Optimize the input match by using a pi-network or a T-match topology. Ensure the output is properly terminated with a 50 ohm load. Use a low noise figure amplifier in the preceding stage.
-
The recommended operating temperature range for the HMC994LP5E is -40°C to +85°C. Operating outside this range may affect device performance and reliability.
Trust Checks
System Verified
HMC994LP5E Overview

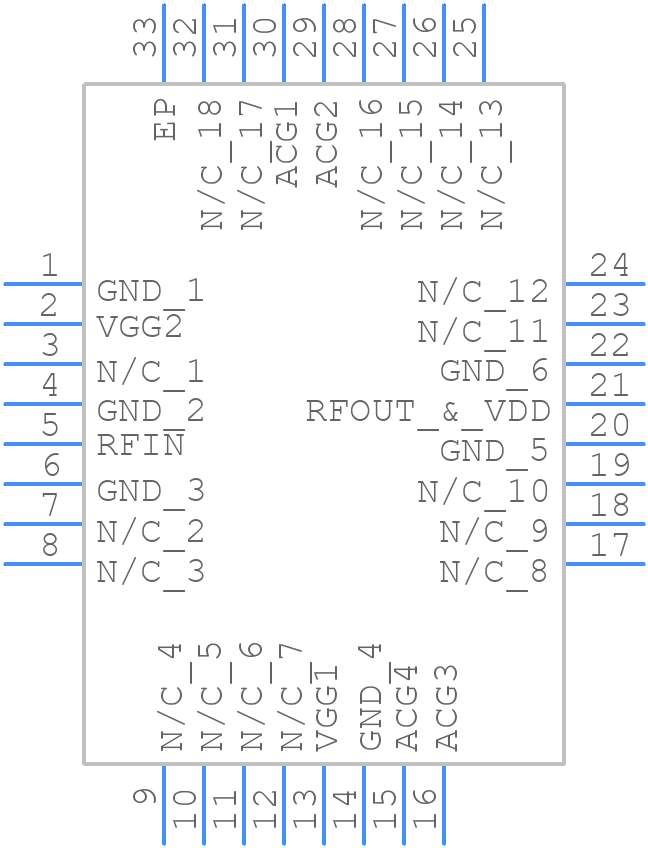

Use the download button to access the HMC994LP5E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC99,
or try a keyword search, such as RF/Microwave Amplifiers
