HMC996LP4E - Analog Devices

Description: ANALOG DEVICES - HMC996LP4E - RF Amplifier, Variable, 16 dB Gain / 2 dB Noise, 5 GHz to 12 GHz, 5 V / 120 mA Supply, QFN-24

Download HMC996LP4E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

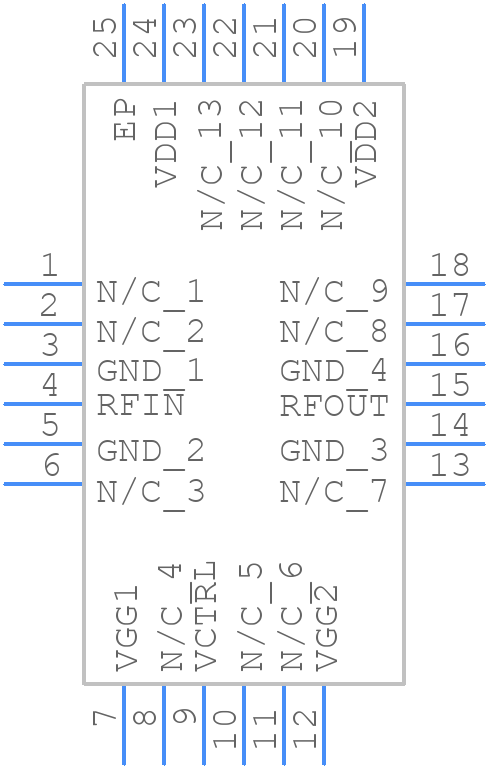

Symbol
HMC996LP4E - Analog Devices - PCB symbol
click to zoom
PCB Footprints
HMC996LP4E - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom
3D Models
HMC996LP4E - Analog Devices - 3D model - Quad Flat No-Lead - 24 pin QFN_2020
click to zoom

HMC996LP4E Details

  • Manufacturer Part Number:

    HMC996LP4E

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    HCP-24-2

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW NOISE

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    13 dB

  • Input Power-Max (CW):

    20 dBm

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    12000 MHz

  • Operating Frequency-Min:

    5000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Terminal Finish:

    Matte Tin (Sn)

HMC996LP4E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure good thermal conductivity by using a thermal pad and connecting it to a heat sink or a metal plate.
  • Optimize the output power and efficiency by adjusting the input power, bias voltage, and load impedance. Use the device's built-in power detector and adjust the bias voltage to achieve the desired output power.
  • Use a pi-network or a T-network for input and output matching. The exact values of the matching components depend on the specific application and frequency range.
  • Use a low-noise amplifier (LNA) before the HMC996LP4E, and ensure proper impedance matching and biasing. Additionally, use a high-quality power supply and decouple the device properly.
  • The device has a maximum junction temperature of 150°C. Derate the output power by 1.5 dB per 10°C above 85°C. Ensure proper thermal management to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HMC996LP4E Overview

Use the download button to access the HMC996LP4E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HMC99, or try a keyword search, such as RF/Microwave Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
