HN1D01FU,LF(T - Toshiba

Description: Diode Switching 85V 0.1A 6-Pin US

Download HN1D01FU,LF(T Model

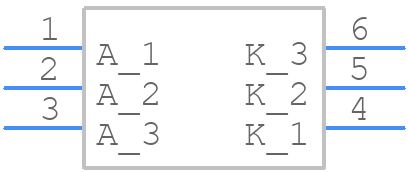

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
HN1D01FU,LF(T - Toshiba PCB footprint - Other - Other - SSOP6-P-0.65A (US6)_1
click to zoom
3D Models
HN1D01FU,LF(T - Toshiba  - 3D model - Other - SSOP6-P-0.65A (US6)_1
click to zoom

HN1D01FU,LF(T Details

  • Manufacturer Part Number:

    HN1D01FU,LF(T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    6.1

  • Application:

    ULTRA FAST RECOVERY

  • Configuration:

    2 BANKS, COMMON ANODE, 2 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.2 V

  • JESD-30 Code:

    R-PDSO-G6

  • Non-rep Pk Forward Current-Max:

    2 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power Dissipation-Max:

    0.2 W

  • Rep Pk Reverse Voltage-Max:

    85 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Recovery Time-Max:

    0.004 µs

  • Reverse Test Voltage:

    80 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

HN1D01FU,LF(T Frequently Asked Questions (FAQs)

  • Toshiba recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Implement a heat sink or thermal management system, and ensure the device is operated within the recommended temperature range (TJ = -40°C to 150°C).
  • The maximum allowed voltage for the input pins is 5.5V, exceeding which may cause damage to the device.
  • Yes, the HN1D01FU,LF(T is suitable for high-frequency switching applications up to 100 kHz, but ensure proper PCB layout and decoupling to minimize ringing and EMI.
  • Implement ESD protection measures such as TVS diodes, ESD filters, or ESD-resistant components to prevent damage from electrostatic discharge.
