HN613128P - HITACHI

Description: Mask Programmable ROM

Download HN613128P Model

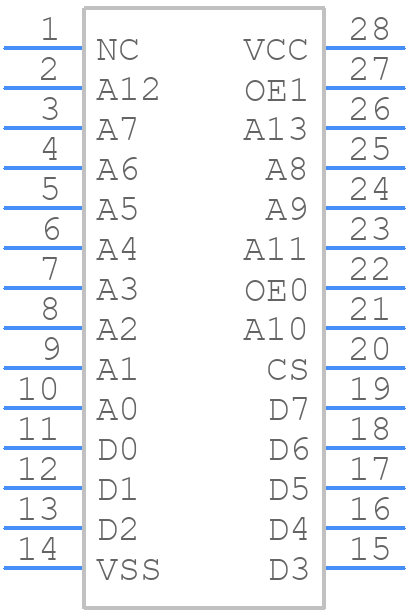

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

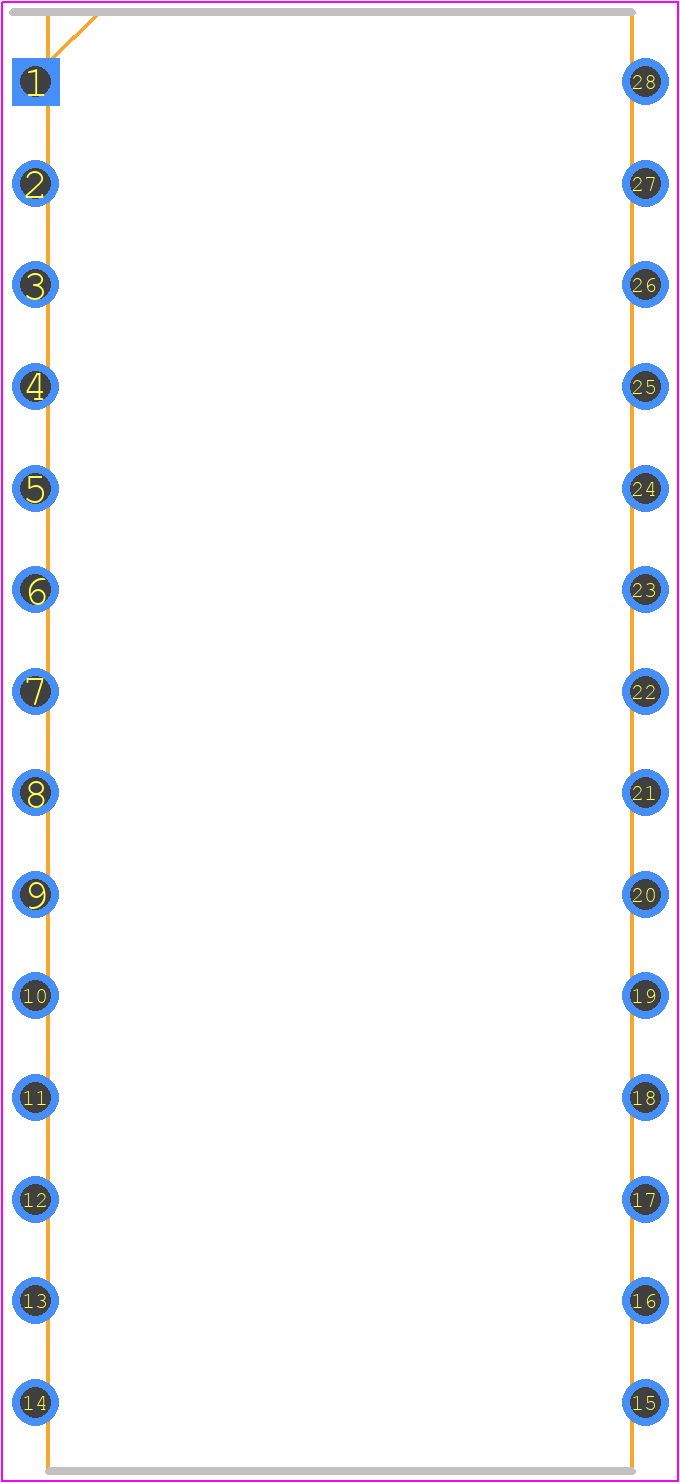

PCB Footprints
HN613128P - HITACHI PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DP-28
click to zoom
3D Models
HN613128P - HITACHI  - 3D model - Dual-In-Line Packages - DP-28
click to zoom

HN613128P Details

  • Manufacturer Part Number:

    HN613128P

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Hitachi Ltd

  • YTEOL:

    0

  • Access Time-Max:

    120 ns

  • JESD-30 Code:

    R-PDIP-T28

  • JESD-609 Code:

    e0

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    MASK ROM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    16384 words

  • Number of Words Code:

    16000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Organization:

    8MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP28,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL
