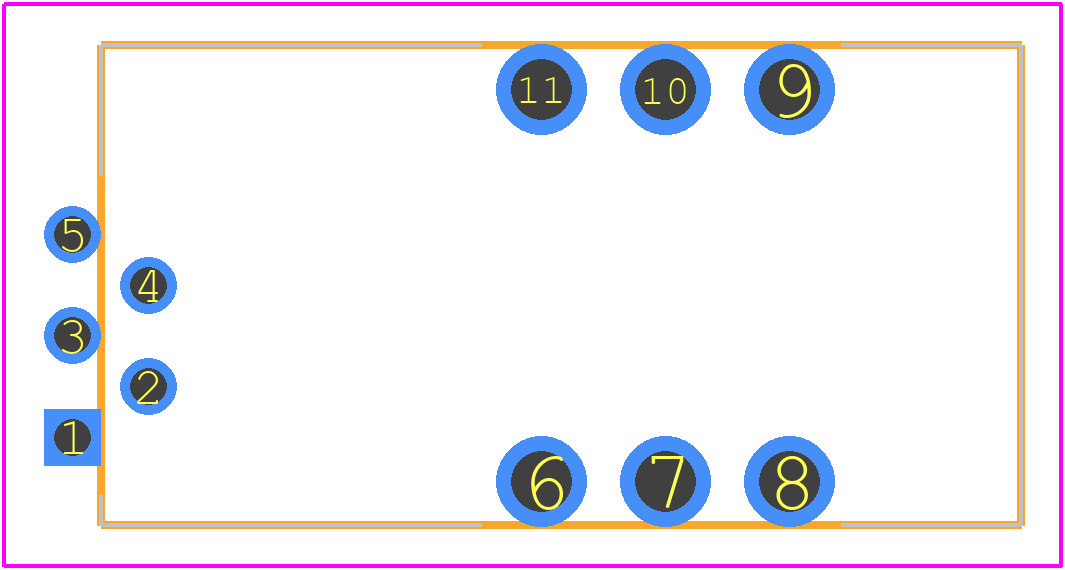

HO10-P/SP33 - LEM PCB footprint - Other - Other - HO10-P/SP33
click to zoom
3D Models
HO10-P/SP33 - LEM  - 3D model - Other - HO10-P/SP33
click to zoom

HO10-P/SP33 Details

  • Manufacturer Part Number:

    HO10-P/SP33

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-5

  • Manufacturer:

    LEM Holdings SSA

  • Body Breadth:

    12 mm

  • Body Height:

    20.9 mm

  • Body Length or Diameter:

    23.94 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Channels:

    1

  • Number of Terminals:

    5

  • Operating Current-Max:

    25 mA

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    -1.15-1.15V

  • Output Type:

    ANALOG OUTPUT

  • Output Voltage-Max:

    1.15 V

  • Output Voltage-Min:

    -1.15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    3.46 V

  • Supply Voltage-Min:

    3.14 V

  • Surface Mount:

    NO
