HO120-NP-0100 - LEM

Description: Current Sensor 120A 1 Channel Hall Effect, Open Loop Bidirectional Module

Download HO120-NP-0100 Model

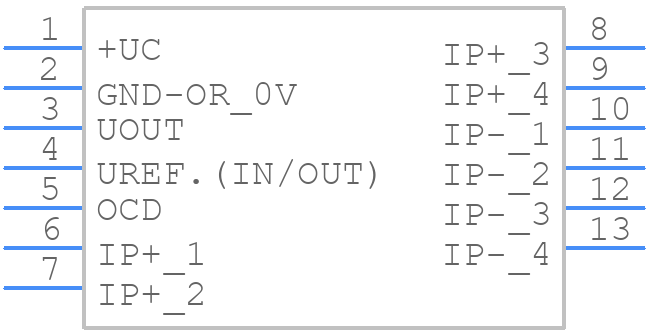

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

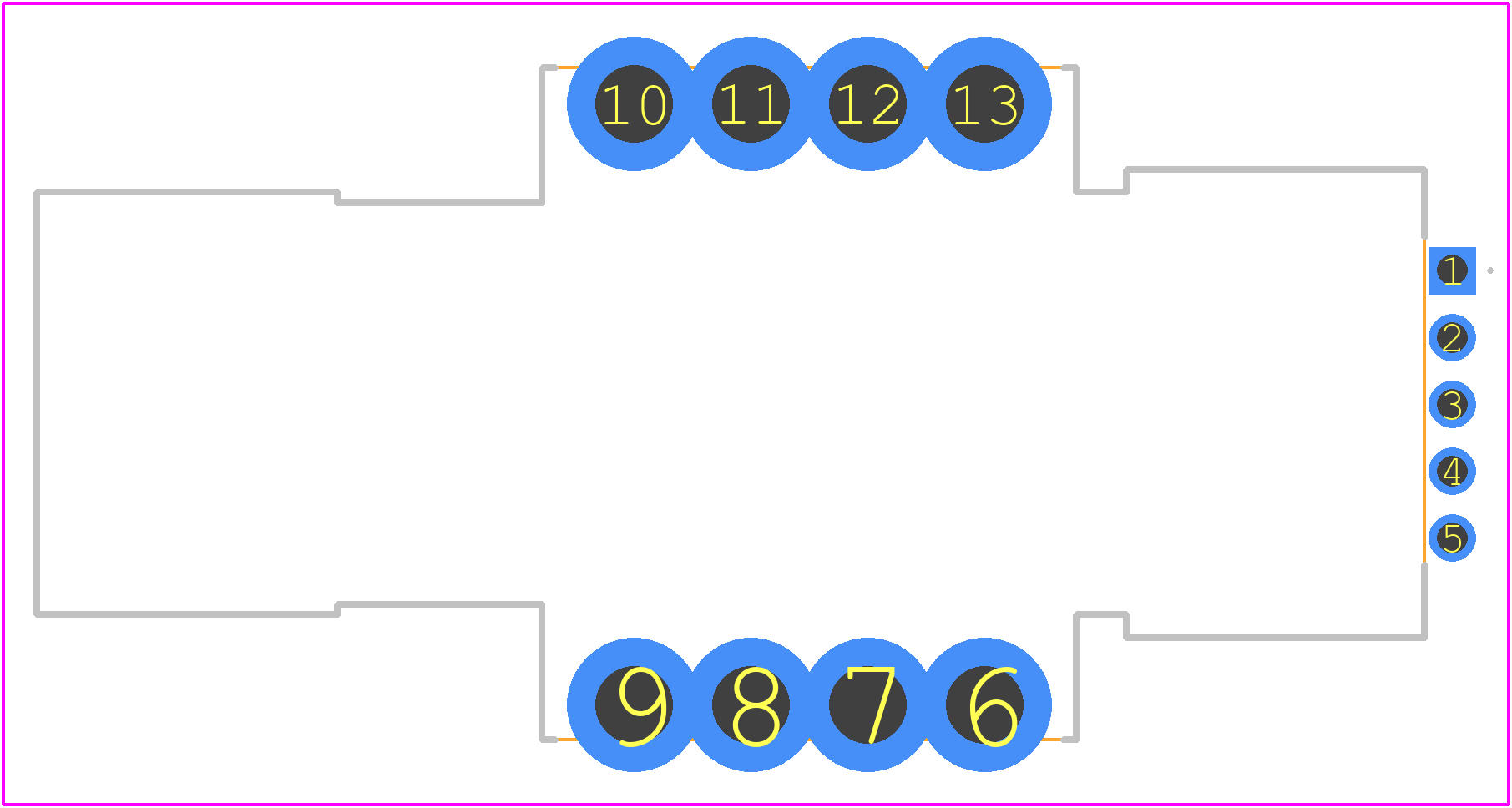

PCB Footprints
HO120-NP-0100 - LEM PCB footprint - Other - Other - HO120-NP-0100-4
click to zoom
3D Models
HO120-NP-0100 - LEM  - 3D model - Other - HO120-NP-0100-4
click to zoom

HO120-NP-0100 Details

  • Manufacturer Part Number:

    HO120-NP-0100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    LEM Holdings SSA

  • Accuracy-Max (%):

    3.6%

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    13

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    -2.0-2.0V

  • Output Type:

    VOLTAGE OUTPUT

  • Sensors/Transducers Type:

    CURRENT SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    NO
