HP5-0053LD - COILCRAFT

Description: Inductance is per winding, measured at 100 kHz, 0.1 Vrms, 0 Adc.

Download HP5-0053LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HP5-0053LD - COILCRAFT - PCB symbol
click to zoom

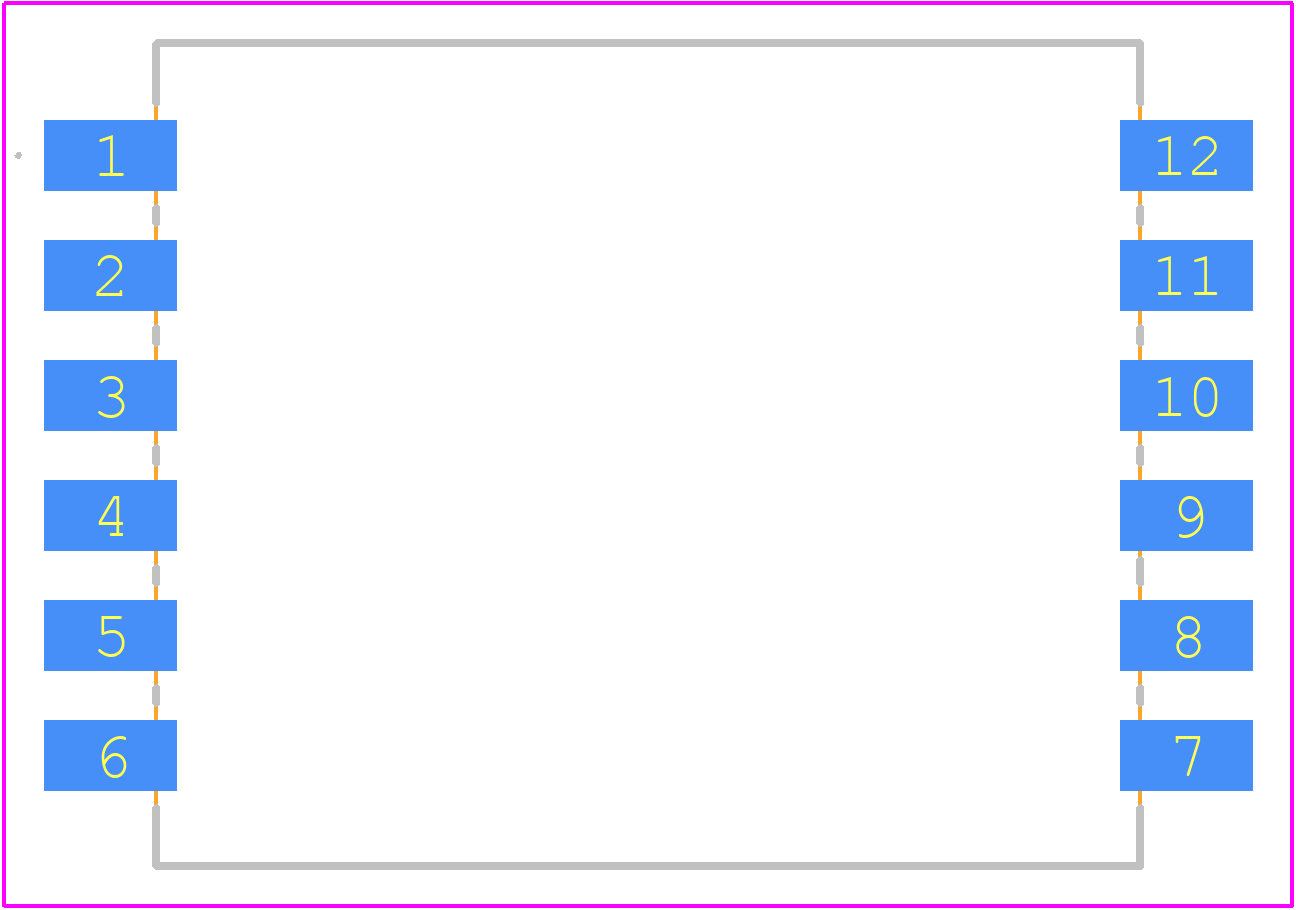

PCB Footprints
HP5-0053LD - COILCRAFT PCB footprint - Other - Other - HP5-0053LD-2
click to zoom
3D Models
HP5-0053LD - COILCRAFT - 3D model - Other - HP5-0053LD-2
click to zoom

HP5-0053LD Details

  • Manufacturer Part Number:

    HP5-0053LD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.4

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.045 Ω

  • Inductance-Nom (L):

    3.4 µH

  • Inductor Application:

    DC-DC CONVERTER

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • JESD-609 Code:

    e2

  • Number of Functions:

    6

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    10.8 mm

  • Package Length:

    29.15 mm

  • Package Style:

    SMT

  • Package Width:

    20.57 mm

  • Packing Method:

    TR, Embossed Plastic, 13 Inch

  • Rated Current-Max:

    2.25 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Placement:

    DUAL IN-LINE

  • Terminal Shape:

    GULL WING

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    5%

HP5-0053LD Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended land pattern for the HP5-0053LD in their datasheet, which includes a suggested pad layout and dimensions for optimal soldering and thermal performance.
  • The HP5-0053LD is rated for operation up to 125°C, but derating may be necessary for extended exposure to high temperatures. Consult Coilcraft's application notes for guidance on high-temperature operation.
  • To ensure optimal reliability, handle the HP5-0053LD by the body, avoiding touching the leads or core. Store the components in a dry, clean environment, and follow proper soldering and assembly techniques.
  • The HP5-0053LD is designed to withstand moderate vibration, but extreme vibration may affect its performance. Consult Coilcraft's application notes or contact their technical support for guidance on using the HP5-0053LD in high-vibration environments.
  • The self-resonant frequency of the HP5-0053LD is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Consult Coilcraft's application notes or contact their technical support for guidance on calculating the self-resonant frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HP5-0053LD Overview

Use the download button to access the HP5-0053LD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HP5-0, or try a keyword search, such as Fixed Inductors

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
