HPC-05PMMP-SF8001 - Amphenol

Description: Standard Circular Connector PANEL SCREW 2PIN M CONN M PIN

Download HPC-05PMMP-SF8001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HPC-05PMMP-SF8001 - Amphenol - PCB symbol
click to zoom
PCB Footprints

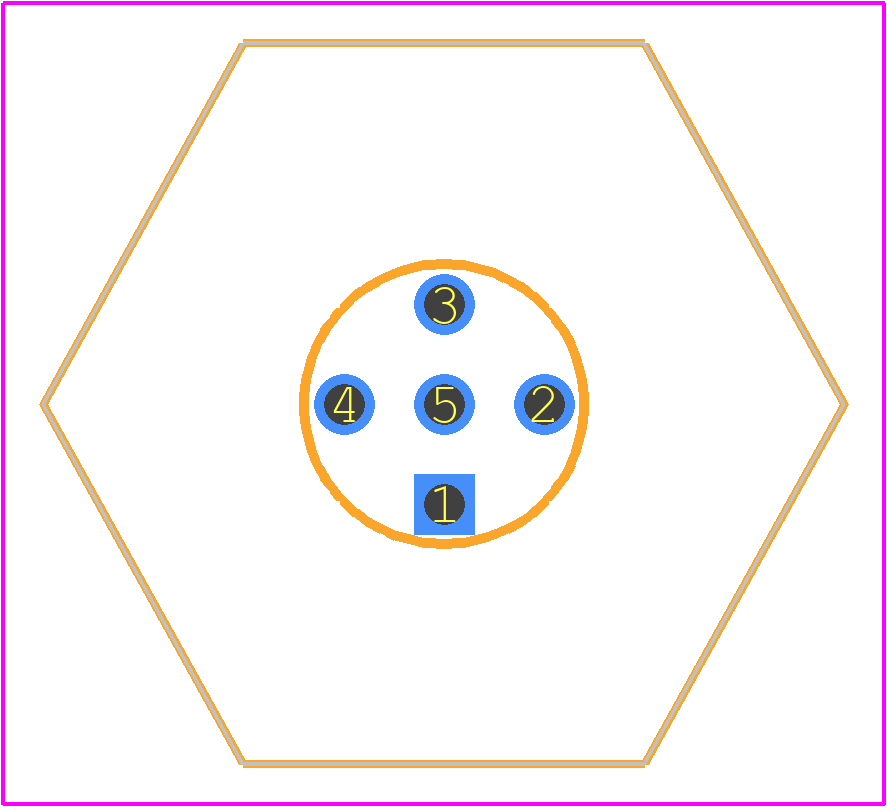

HPC-05PMMP-SF8001 - Amphenol PCB footprint - Other - Other - HPC-05PMMP-SF8001-3
click to zoom
3D Models
HPC-05PMMP-SF8001 - Amphenol - 3D model - Other - HPC-05PMMP-SF8001-3
click to zoom

HPC-05PMMP-SF8001 Details

  • Manufacturer Part Number:

    HPC-05PMMP-SF8001

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    Amphenol Corporation

  • Connector Type:

    CIRCULAR CONNECTOR

HPC-05PMMP-SF8001 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the HPC-05PMMP-SF8001 is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The HPC-05PMMP-SF8001 is designed to be compatible with other manufacturers' HPC (High Power Connector) connectors, but it's recommended to verify compatibility before use.
  • The operating temperature range for the HPC-05PMMP-SF8001 is -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.
  • Yes, the HPC-05PMMP-SF8001 is designed for high-current applications, with a current rating of up to 300A per contact, depending on the specific configuration and wire size used.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

HPC-05PMMP-SF8001 Overview

Use the download button to access the HPC-05PMMP-SF8001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like HPC-0, or try a keyword search, such as Other Circular Connectors
