HPC2C100K - KOA Speer

Description: Ceramic Composition Resistors 10 ohm 10% 2W CURRENT

Download HPC2C100K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
HPC2C100K - KOA Speer - PCB symbol
click to zoom
PCB Footprints

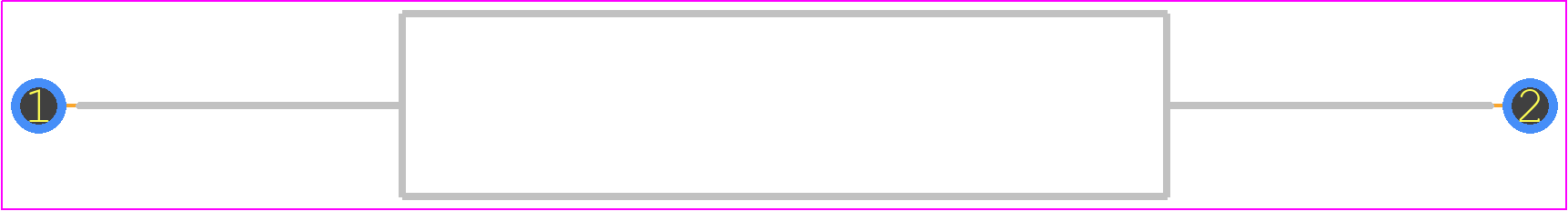

HPC2C100K - KOA Speer PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - 21 mm x 5 mm
click to zoom
3D Models
HPC2C100K - KOA Speer - 3D model - Resistors, Axial Diameter Horizontal Mounting - 21 mm x 5 mm
click to zoom

HPC2C100K Details

  • Manufacturer Part Number:

    HPC2C100K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.90

  • Manufacturer:

    KOA Speer Electronics Inc

  • YTEOL:

    5.5

  • Additional Feature:

    NON INDUCTIVE

  • Construction:

    Tubular

  • JESD-609 Code:

    e2

  • Lead Diameter:

    0.8 mm

  • Lead Length:

    38 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    200 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Diameter:

    5 mm

  • Package Length:

    21 mm

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Rated Power Dissipation (P):

    2 W

  • Rated Temperature:

    40 °C

  • Reference Standard:

    AEC-Q200; IEC60115-1

  • Resistance:

    10 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    CERAMIC COMPOSITION

  • Temperature Coefficient:

    -600,-1500 ppm/°C

  • Terminal Finish:

    TIN COPPER

  • Terminal Shape:

    WIRE

  • Tolerance:

    10%

  • Working Voltage:

    400 V

HPC2C100K Frequently Asked Questions (FAQs)

  • The recommended land pattern for HPC2C100K is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • Yes, HPC2C100K is rated for operation up to 150°C, making it suitable for high-temperature applications. However, the derating curve should be consulted to ensure the component can handle the specific temperature requirements.
  • The recommended soldering profile for HPC2C100K is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. A soldering iron with a temperature range of 350-400°C is recommended.
  • Yes, HPC2C100K is compatible with lead-free soldering. The component is RoHS compliant and can be soldered using lead-free solder alloys such as SAC305 or Sn96.5Ag3Cu0.5.
  • The MSL of HPC2C100K is level 1, which means it can withstand a maximum of 30 days of exposure to ambient humidity without requiring special handling or storage.
